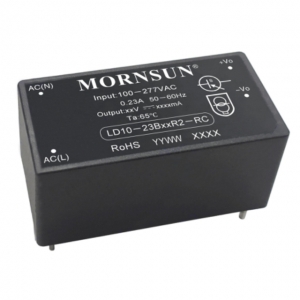

LD10-23BxxR2-RC
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
LD10-23BxxR2-RC series is one of Mornsun’ scompact AC-DC power converters.It features ultra-wide AC input voltage ranges and
compatible with DC input voltage,low power consumption,low ripple & noise,high efficiency,high reliability,reinforced insulation.It offers
good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets safety standard IEC/EN/UL62368,EN60335,EN62477.
The converters are widely used in industrial,electric automation,home appliances and EV charging applications.For extremely harsh EMC
environment,we recommend to use the application circuit shown in Design Reference of this datasheet.
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| LD10-23B03R2-RC | 8.6 | 85-264 | 100-370 | 3.3 | 2600mA | 1 | 4200VAC | DIP | 52.40*27.20*24.00 | ||||
| LD10-23B05R2-RC | 10 | 85-264 | 100-370 | 5 | 2000mA | 1 | 4200VAC | DIP | 52.40*27.20*24.00 | ||||
| LD10-23B12R2-RC | 10 | 85-264 | 100-370 | 12 | 830mA | 1 | 4200VAC | DIP | 52.40*27.20*24.00 | ||||
| LD10-23B15R2-RC | 10 | 85-264 | 100-370 | 15 | 660mA | 1 | 4200VAC | DIP | 52.40*27.20*24.00 | ||||
| LD10-23B24R2-RC | 10 | 85-264 | 100-370 | 24 | 410mA | 1 | 4200VAC | DIP | 52.40*27.20*24.00 |
* For reference only. The detailed info please refer to the datasheet.
