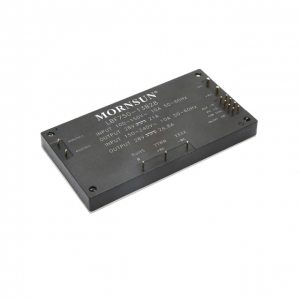

LBF750-13Bxx
Features
LBF750-13Bxx series is the Mornsun AC/DC brick package power supply. It features universal AC input and at the same time accepts DC input voltage, high power density, high efficiency, and reinforced isolation. It offers good EMC performance compliant with CISPR32/EN55032, and UL/IEC/EN62368 standards. The products are widely used in military, industrial control, data communication, network communication, server, vehicle/airborne/ship system, and other industries. For an extremely harsh EMC environment, were commend using the application circuit shown in the Design Reference of the datasheet.
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | Efficiency(%) | Isolation | THD | Parallel(PC) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
| LBF750-13B12 | 696 | 85-305 | 120-430 | 12 | 58A | 89 | 3000VAC | - | YES | - | ||||
| LBF750-13B24 | 750 | 85-305 | 120-430 | 24 | 31.2A | 91 | 3000VAC | - | YES | - | ||||
| LBF750-13B28 | 750 | 85-305 | 120-430 | 28 | 26.8A | 91.5 | 3000VAC | - | YES | - | ||||
| LBF750-13B48 | 750 | 85-305 | 120-430 | 48 | 15.6A | 92 | 3000VAC | - | YES | - | ||||
| LBF750-13B54 | 750 | 85-305 | 120-430 | 54 | 13.9A | 92 | 3000VAC | - | YES | - |
* For reference only. The detailed info please refer to the datasheet.
