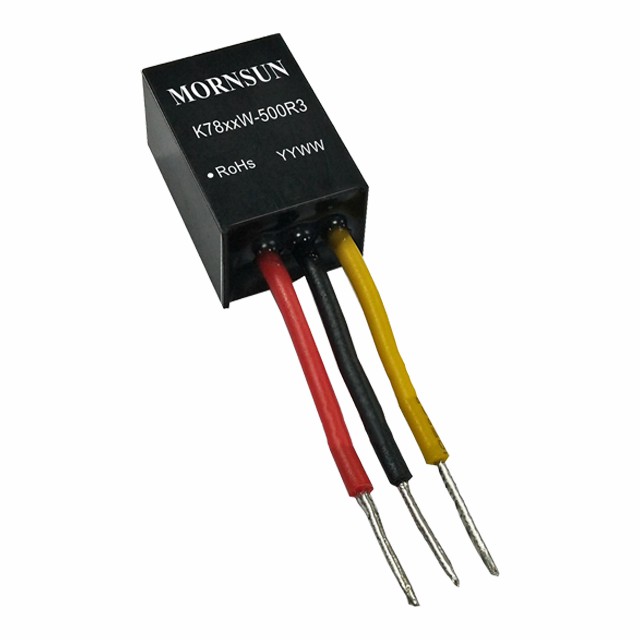

K78xxW-500R3

Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.

Features

K78xxW-500R3 series are high efficiency switching regulators and ideal substitutes of LM78xx series three-terminal linear regulators. The product is featured with high efficiency, low loss, short circuit protection, support the negative output and no heat sink requirement. These products are widely used in applications such as industrial control, instrumentation and electric power.

MORNSUN_DC/DC - Switching Regulator_K78xxW-500R3
MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) Iout No. of Outputs Package Dimension(mm) Footprint & 3D Markings Datasheet Sample
K7803W-500R3 1.65 24(4.75-36) 3.3 500mA 1 Chassis 11.50*9.00*17.50
K7805W-500R3 2.5 24(6.5-36) 5 500mA 1 Chassis 11.50*9.00*17.50
K7809W-500R3 4.5 24(12-36) 9 500mA 1 Chassis 11.50*9.00*17.50
K7812W-500R3 6 24(15-36) 12 500mA 1 Chassis 11.50*9.00*17.50
K7815W-500R3 7.5 24(19-36) 15 500mA 1 Chassis 11.50*9.00*17.50

* For reference only. The detailed info please refer to the datasheet.
