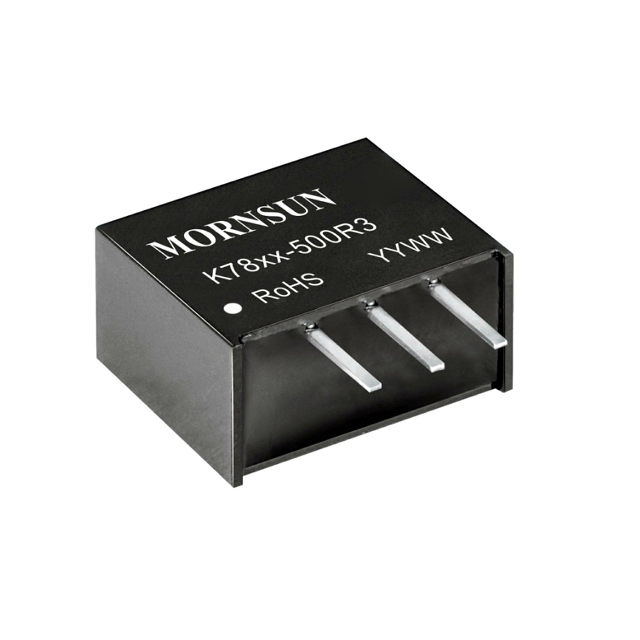

K78xx-500R3
Features
K78xx-500R3 series is high efficiency switching regulators and ideal substitutes for LM78xx series three-terminal linear regulators. The converters feature high efficiency, low loss, short circuit protection, positive or negative output voltage, and there is no need for a heat sink. These products are widely used in applications such as industrial control, instrumentation and electric power.
| Product No. | Vin(VDC) | Vout(VDC) | Iout(mA) | No. of Outputs | Package | Dimension(mm) | 3D Impression Drawing (.stp) | Certification | Datasheet | Sample | Buy |
| K7803-500R3 | 4.75~36 | 3.3 | 500 | 1 | SIP | 11.60*7.55*10.16 |
|
-
|
-
|
|
|
| K7809-500R3 | 12~36 | 9 | 500 | 1 | SIP | 11.60*7.55*10.16 |
|
-
|
-
|
|
|
| K7812-500R3 | 15~36 | 12 | 500 | 1 | SIP | 11.60*7.55*10.16 |
|
-
|
-
|
|
|
| K7815-500R3 | 19~36 | 15 | 500 | 1 | SIP | 11.60*7.55*10.16 |
|
-
|
-
|
|
|
| K7805-500R3 | 6.5~36 | 5 | 500 | 1 | SIP | 11.60*7.55*10.16 |
|
-
|
-
|
|
|
* For reference only. The detailed info please refer to the datasheet.
