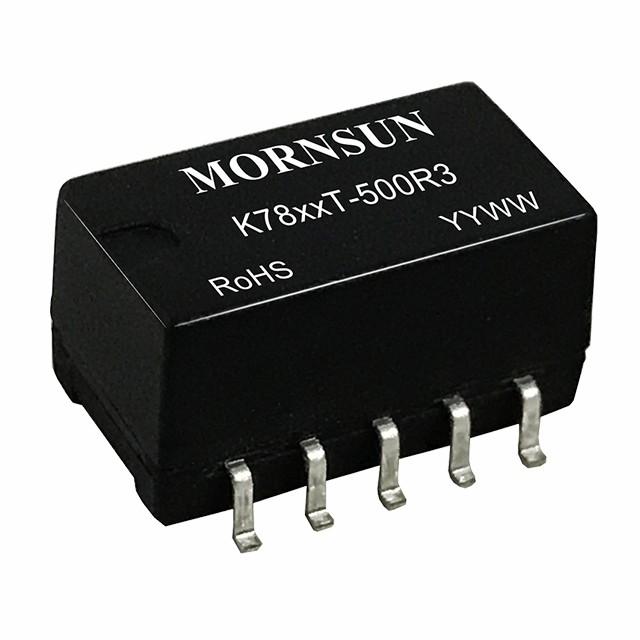

K78_T-500R3
Features
K78_T-500R3 series are high efficiency switching regulators. The converters feature high efficiency, low loss and short circuit protection in a compact SMD package. These products are widely used in applications such as industrial control, instrumentation and electric power.
| Product No. | Vin(VDC) | Vout(VDC) | Iout(mA) | No. of Outputs | Package | Dimension(mm) | 3D Impression Drawing (.stp) | Certification | Datasheet | Sample | Buy |
| K7801T-500R3 | 4.75~28 | 1.5 | 500 | 1 | SMD | 15.24*11.40*8.25 |
|
- |
-
|
|
|
| K78X2T-500R3 | 4.75~28 | 1.8 | 500 | 1 | SMD | 15.24*11.40*8.25 |
|
- |
-
|
|
|
| K7802T-500R3 | 4.75~32 | 2.5 | 500 | 1 | SMD | 15.24*11.40*8.25 |
|
- |
-
|
|
|
| K7803T-500R3 | 4.75~36 | 3.3 | 500 | 1 | SMD | 15.24*11.40*8.25 |
|
- |
-
|
|
|
| K7805T-500R3 | 6.5~36 | 5 | 500 | 1 | SMD | 15.24*11.40*8.25 |
|
- |
-
|
|
|
| K78X6T-500R3 | 8~36 | 6.5 | 500 | 1 | SMD | 15.24*11.40*8.25 |
|
- |
-
|
|
|
| K7809T-500R3 | 12~36 | 9 | 500 | 1 | SMD | 15.24*11.40*8.25 |
|
- |
-
|
|
|
| K7812T-500R3 | 15~36 | 12 | 500 | 1 | SMD | 15.24*11.40*8.25 |
|
- |
-
|
|
|
| K7815T-500R3 | 19~36 | 15 | 500 | 1 | SMD | 15.24*11.40*8.25 |
|
- |
-
|
|
|
* For reference only. The detailed info please refer to the datasheet.
