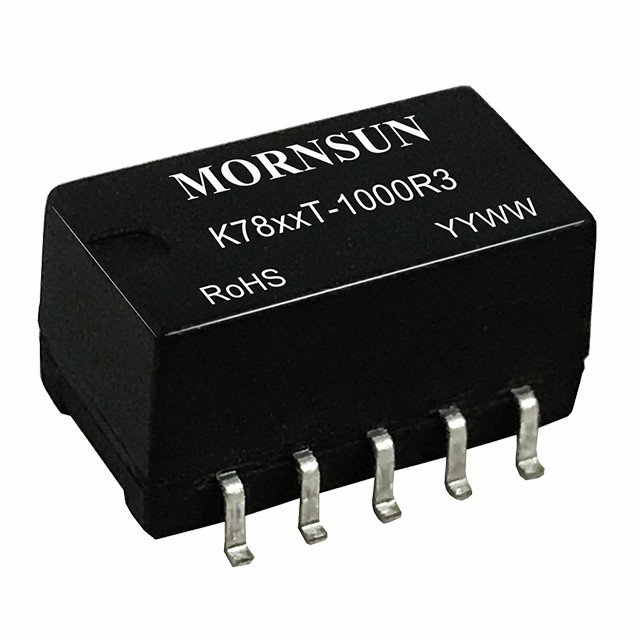

K78_T-1000R3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
K78_T-1000R3 series are high efficiency switching regulators. The converters feature high efficiency, low loss and short circuit protection in a compact SMD package. These products are widely used in applications such as industrial control, instrumentation and electric power.
| Product No. | Vin(VDC) | Vout(VDC) | Iout(A) | Efficiency(MAX.) | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| K7801T-1000R3 | 4.75~32 | 1.5 | 1 | 0.76 | SMD | 15.24*11.40*8.25 | ||||
| K78X2T-1000R3 | 4.75~32 | 1.8 | 1 | 0.79 | SMD | 15.24*11.40*8.25 | ||||
| K7802T-1000R3 | 4.75~32 | 2.5 | 1 | 0.86 | SMD | 15.24*11.40*8.25 | ||||
| K7803T-1000R3 | 6.5~36 | 3.3 | 1 | 0.9 | SMD | 15.24*11.40*8.25 | ||||
| K7805T-1000R3 | 8~36 | 5 | 1 | 0.93 | SMD | 15.24*11.40*8.25 | ||||
| K78X6T-1000R3 | 10~36 | 6.5 | 1 | 0.93 | SMD | 15.24*11.40*8.25 | ||||
| K7809T-1000R3 | 13~36 | 9 | 1 | 0.94 | SMD | 15.24*11.40*8.25 | ||||
| K7812T-1000R3 | 16~36 | 12 | 0.8 | 0.95 | SMD | 15.24*11.40*8.25 |
* For reference only. The detailed info please refer to the datasheet.
