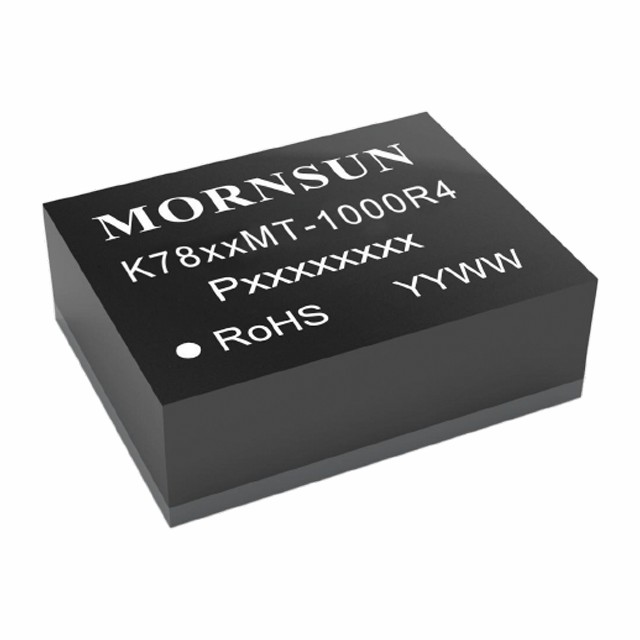

K78_MT-1000R4
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
K78_MT-1000R4 series are high efficiency switching regulators. The converters feature high efficiency, low loss and short-circuit protection in a compact DFN package. These products are widely used in applications such as industrial control, instrumentation and electric power.
| Product No. | Vin(VDC) | Vout(VDC) | Iout(A) | Efficiency(MAX.) | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| K7803MT-1000R4 | 24 (4.75-36) | 3.3 | 1 | 0.89 | DFN | 9.00*7.00*3.10 | ||||
| K7805MT-1000R4 | 24 (6.5-36) | 5 | 1 | 0.92 | DFN | 9.00*7.00*3.10 | ||||
| K78X6MT-1000R4 | 24 (8-36) | 6.5 | 1 | 0.92 | DFN | 9.00*7.00*3.10 | ||||
| K7809MT-1000R4 | 24 (12-36) | 9 | 1 | 0.92 | DFN | 9.00*7.00*3.10 | ||||
| K7812MT-1000R4 | 24 (15-36) | 12 | 1 | 0.94 | DFN | 9.00*7.00*3.10 | ||||
| K7815MT-1000R4 | 24 (18-36) | 15 | 1 | 0.94 | DFN | 9.00*7.00*3.10 |
* For reference only. The detailed info please refer to the datasheet.
