K78_JT-500R3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features

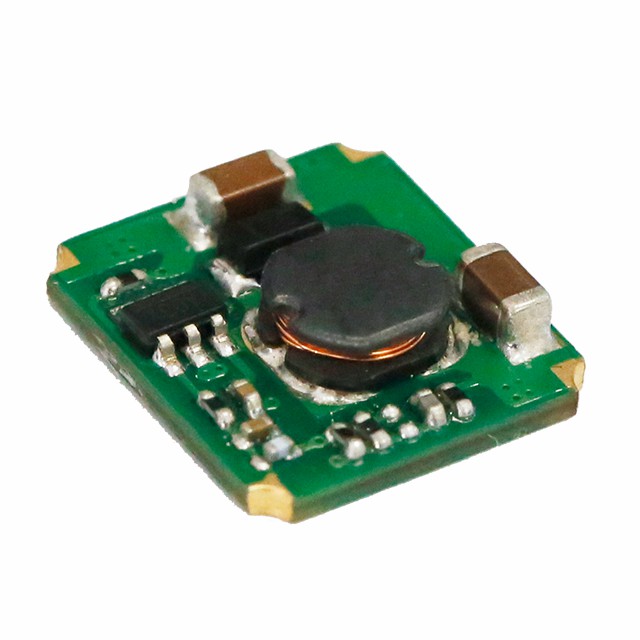

K78_JT-500R3 series are high efficiency switching regulators. The converters feature high efficiency, low loss and short-circuit protection in a compact SMD package. These products are widely used in applications such as industrial control, instrumentation and electric power.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| K7803JT-500R3 | 1.65 | 24(4.75-36) | 3.3 | 500mA | 1 | SMD(without housing) | 12.50*13.50*3.50 | ||||
| K7805JT-500R3 | 2.5 | 24(6.5-36) | 5 | 500mA | 1 | SMD(without housing) | 12.50*13.50*3.50 | ||||
| K7809JT-500R3 | 4.5 | 24(12-36) | 9 | 500mA | 1 | SMD(without housing) | 12.50*13.50*3.50 | ||||
| K7812JT-500R3 | 6 | 24(15-36) | 12 | 500mA | 1 | SMD(without housing) | 12.50*13.50*3.50 | ||||
| K7815JT-500R3 | 7.5 | 24(19-36) | 15 | 500mA | 1 | SMD(without housing) | 12.50*13.50*3.50 |
* For reference only. The detailed info please refer to the datasheet.
