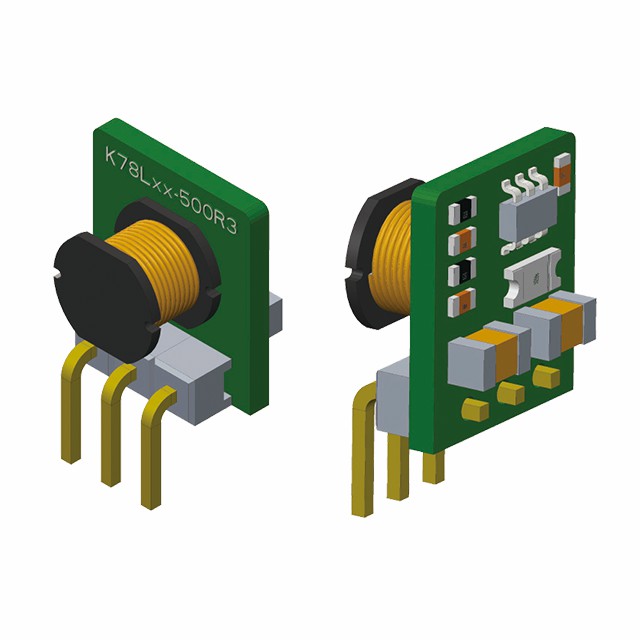

K78Lxx-500R3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
K78Lxx-500R3 series is high efficiency switching regulators and ideal substitutes of LM78xx series three-terminal linear regulators. The converters feature high efficiency, low loss, short circuit protection, positive or negative output voltage, and there is no need for a heat sink. These products are widely used in applications such as industrial control, instrumentation, electric power.
| Product No. | Vin(VDC) | Vout(VDC) | Iout(A) | Efficiency(MAX.) | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| K78L03-500R3 | 24(4.75-36) | 3.3 | 0.5 | 0.86 | SIP(without housing) | 10.00*7.20*11.00 | ||||
| K78L05-500R3 | 24(6.5-36) | 5 | 0.5 | 0.9 | SIP(without housing) | 10.00*7.20*11.00 | ||||
| K78L12-500R3 | 24(15-36) | 12 | 0.5 | 0.94 | SIP(without housing) | 10.00*7.20*11.00 | ||||
| K78L15-500R3 | 24(19-36) | 15 | 0.5 | 0.95 | SIP(without housing) | 10.00*7.20*11.00 |
* For reference only. The detailed info please refer to the datasheet.
