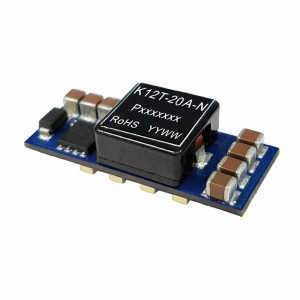

K12T-20A
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
K12T-10A,16A,20Aseriesisa10A,16A,20Anon-isolatedswitchingregulator.Theoutputvoltageisaccuratelyadjustablefrom0.6Vto5.0V, andtheproductisfeaturedwithhighefficiency,fasttransientresponse,inputunder-voltage,outputshortcircuit,over-currentprotection. TheymeetCLASSBofCISPR32/EN55032EMIstandardsbyaddingtherecommendedexternalcomponentsandtheyarewidelyusedin applicationssuchascommunications,computernetworkindustry,powerdistributedarchitecture,workstations,servers,LANs/WANsand providehighcurrentwithfasttransientresponseforhigh-speedchipssuchasFPGA,DSP,andASIC.
| Product No. | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| K12T-20A-P | 12(8-14) | 0.6-5 | 20000mA | 1 | SMD | 33.00*13.50*9.90 | - | |||
| K12T-20A-N | 12(8-14) | 0.6-5 | 20000mA | 1 | SMD | 33.00*13.50*9.90 | - |
* For reference only. The detailed info please refer to the datasheet.
