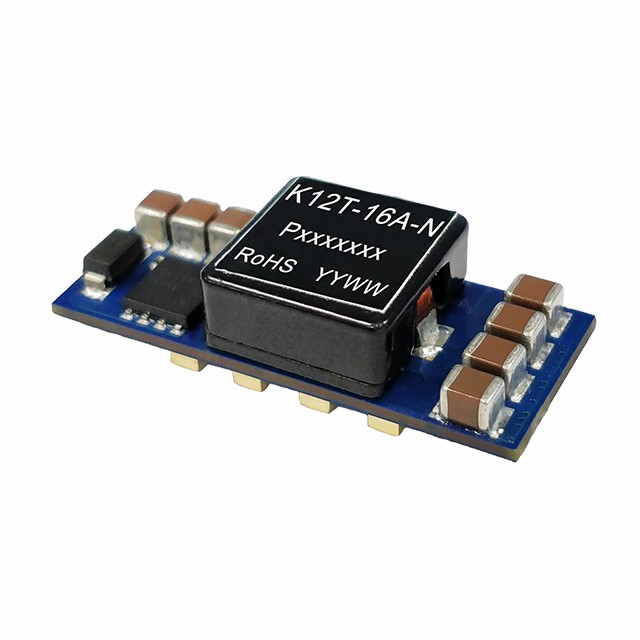

K12T-16A
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
K12T-16A series is a 16A non-isolated switching regulator. The output voltage is accurately adjustable from 0.75V to 5.0V, and the product is featured with high efficiency, fast transient response, input under-voltage, output short circuit, over-current protection. They meet CLASS B of CISPR32/EN55032 EMI standards by adding the recommended external components and they are widely used in applications such as communications, computer network industry, power distributed architecture, workstations, servers, LANs/WANs and provide high current with fast transient response for high-speed chips such as FPGA, DSP, and ASIC.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| K12T-16A-P | 80 | 12(8.3-14) | 0.75-5 | 16000mA | 1 | SMD | 33.00*13.50*8.30 | ||||
| K12T-16A-N | 80 | 12(8.3-14) | 0.75-5 | 16000mA | 1 | SMD | 33.00*13.50*8.30 |
* For reference only. The detailed info please refer to the datasheet.
