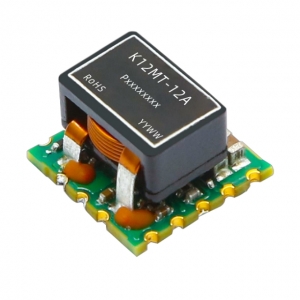

K12MT-12A
Features
K12MT-12A series is a high-efficiency POL switching regulator,it features load capacity of 12A,the output voltage is precisely adjustable
from0.6V-5.5V,high conversion efficiency,fast transient response,and output short circuit protection.It is widely used in communications,
computer network industries,and power distributed architecture,workstations,servers,LANs/WANs,providing high current with fast transient
response for high-speed chips of FPGA,DSP and ASIC.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
| K12MT-12A-P | 66 | 12(4.5-14.4) | 0.6-5.5 | 12000mA | 1 | SMD | 12.20*12.20*8.70 | - | ||||
| K12MT-12A-N | 66 | 12(4.5-14.4) | 0.6-5.5 | 12000mA | 1 | SMD | 12.20*12.20*8.70 | - |
* For reference only. The detailed info please refer to the datasheet.
