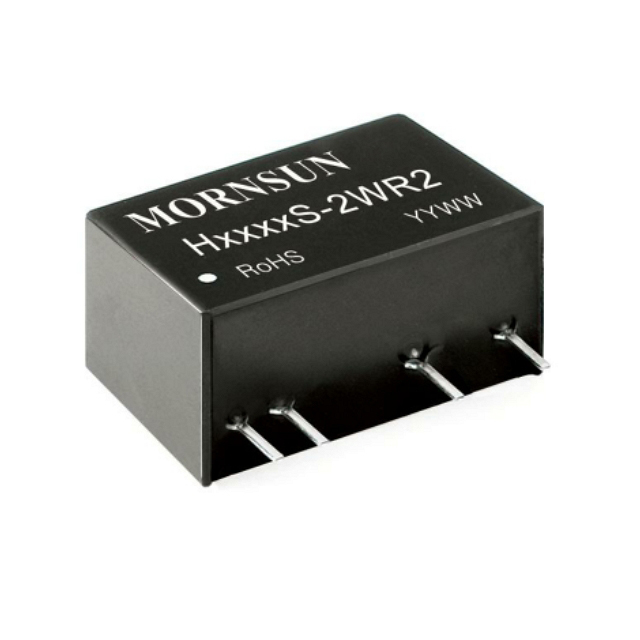

H_S-2WR2
Features
H_S-2WR2 series meets reinforced insulation requirements. They are especially designed for applications where extremely high isolation, low insulation capacitor with low leakage current in a compact package size is required. They are widely used in applications such as medical, electrical grid, IGBT driver circuits.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation(VDC) | Package | Dimension(mm) | Footprint & 3D | Certification | Datasheet | Sample | Buy |
| H0505S-2WR2 | 2 | 4.5~5.5 | 5 | 1 | 6000 | SIP | 19.50*9.80*12.50 |
|
-
|
-
|
|
|
| H0512S-2WR2 | 2 | 4.5~5.5 | 12 | 1 | 6000 | SIP | 19.50*9.80*12.50 |
|
-
|
-
|
|
|
| H0515S-2WR2 | 2 | 4.5~5.5 | 15 | 1 | 6000 | SIP | 19.50*9.80*12.50 |
|
-
|
-
|
|
|
| H1205S-2WR2 | 2 | 10.8~13.2 | 5 | 1 | 6000 | SIP | 19.50*9.80*12.50 |
|
-
|
-
|
|
|
| H1212S-2WR2 | 2 | 10.8~13.2 | 12 | 1 | 6000 | SIP | 19.50*9.80*12.50 |
|
-
|
-
|
|
|
| H1215S-2WR2 | 2 | 10.8~13.2 | 15 | 1 | 6000 | SIP | 19.50*9.80*12.50 |
|
-
|
-
|
|
|
| H1505S-2WR2 | 2 | 13.5~16.5 | 5 | 1 | 6000 | SIP | 19.50*9.80*12.50 |
|
-
|
-
|
|
|
| H1515S-2WR2 | 2 | 13.5~16.5 | 15 | 1 | 6000 | SIP | 19.50*9.80*12.50 |
|
- |
-
|
|
|
| H2405S-2WR2 | 2 | 21.6~26.4 | 5 | 1 | 6000 | SIP | 19.50*9.80*12.50 |
|
-
|
-
|
|
|
| H2412S-2WR2 | 2 | 21.6~26.4 | 12 | 1 | 6000 | SIP | 19.50*9.80*12.50 |
|
-
|
-
|
|
|
| H2415S-2WR2 | 2 | 21.6~26.4 | 15 | 1 | 6000 | SIP | 19.50*9.80*12.50 |
|
-
|
-
|
|
|
* For reference only. The detailed info please refer to the datasheet.
