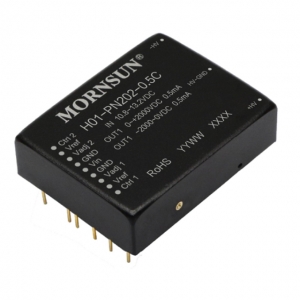

HO1-PN202-0.5C
Features
HO1-PN202-0.5C offer 2W of output,with operating ambient temperature range -40℃ to + 105℃,input reverse polarity protection,control
voltage over-voltage protection,output short circuit protection,over-current protection,six-sided metal shielding package,low ripple,low
time coefficient and temperature coefficient,which are specifically designed for applications in board power systems where high voltages
are required and output ripple requirements are high and output voltage stability is critical.They are widely used infields suchas
photomultiplier tubes,mass spectrum,light spectrum,electron beam,ion beam,avalanche diodes
Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
HO1-PN202-0.5C | 2 | 12 | ±2000 | 2 | DIP | 45.00*35.00*12.50 | - |
* For reference only. The detailed info please refer to the datasheet.
