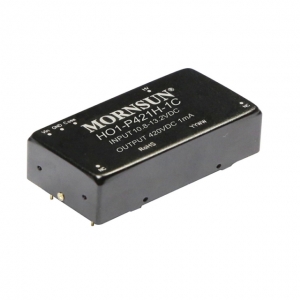

HO1-P421H-1C
Features
HO1-P421H-1C offers 0.42W of output,with operating ambient temperature range -25℃ to + 75℃,input reverse polarity protection,output short circuit protection,over-current protection,ultra compact size,low ripple,low time coefficient andtemperature coefficient,which are specifically designed for applications in board power systems where high voltages are required and output ripple requirements are high and output voltage stability is critical.products are widely used in:avalanche photodiode,ion beam,mass spectrum,light spectrum,electron beam,ion beam,ultrasonic flaw detector and other high voltage applications.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
| HO1-P421H-1C | 0.42 | 12 | 420 | 1 | DIP | 45.50*23.00*12.50 | - |
* For reference only. The detailed info please refer to the datasheet.
