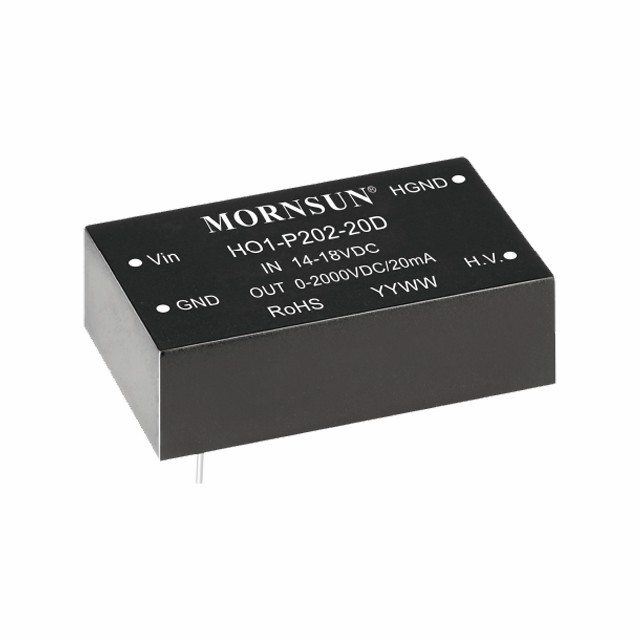

HO1-P202-20D

Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.

Features

HO1-P202-20D are DC-DC products feature with non-isolated, constant current output at 20 mA, maximum output voltage up to 1000/2000VDC, operating ambient temperature range of -20℃ to +50℃, input under-voltage protection, output short-circuit protection, over-voltage protection. They are widely used in high voltage storage pulse capacitor and high voltage constant-current source fields.

MORNSUN_DC/DC - High Voltage Output Converter_HO1-P202-20D
MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Package Dimension(mm) Footprint & 3D Markings Datasheet Sample
HO1-P202-20D 40 16 0~2000 1 DIP 80.00*55.00*28.00
-

* For reference only. The detailed info please refer to the datasheet.
