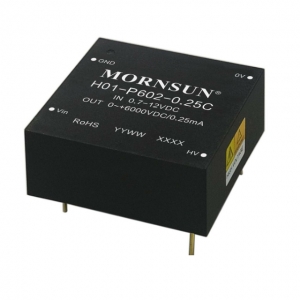

HO1-P(N)602-0.25C
Features
HO1-P(N)602-0.25C Series offer 1.5W of output,with operating ambient temperature range -40℃to +85℃,isolation voltage 3500VDC,and output voltage follows input voltage linearly proportional continuously adjustable,which are specifically designed for applications in board power systems where high voltages are required and output voltage accuracy is critical.They are widely used in fields such as light spectrum,mass spectrum,electron beam,ion beam,avalanche diodes,electrophoresis,capacitor charging.
602-0.25C.jpg)
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
| HO1-P602-0.25C | 1.5 | 12 | 0~6000 | 1 | DIP | 38.10*38.10*16.00 | - | ||||
| HO1-N602-0.25C | 1.5 | 12 | -6000~0 | 1 | DIP | 38.10*38.10*16.00 | - |
* For reference only. The detailed info please refer to the datasheet.
