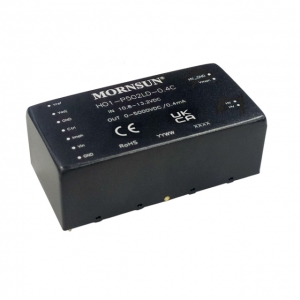

HO1-P(N)502LD-0.4C
Features
HO1-P(N)502LD-0.4C series offer 2W of output,with ultra wide operating ambient temperature range -40℃ to +105℃,input reverse polarity protection,control voltage over-voltage protection,output short circuit protection,over-current protection,six-sided metal shielding package,low ripple,low time coefficient and temperature coefficient,which are specifically designed for applications in board power systems where high voltages are required and output ripple requirement sare high and output voltage stability is critical.They are widely used in fields such as electrophoresis,mass spectrum,light spectrum,electron beam,ion beam,nuclear radiation detection
Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
HO1-P502LD-0.4C | 2 | 12 | 5000 | 1 | DIP | 74.60*38.10*26.00 | - | ||||
HO1-N502LD-0.4C | 2 | 12 | -5000 | 1 | DIP | 74.60*38.10*26.00 | - |
* For reference only. The detailed info please refer to the datasheet.
