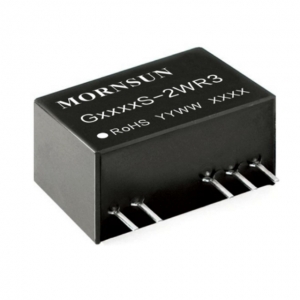

G_S-2WR3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
G_S-2WR3&H_S-2WR3seriesmeetreinforcedinsulationrequirements.Theyarespeciallydesignedforapplicationswhererequirecompact size,highisolation,lowisolationcapacitorandlowleakagecurrentpower.Theyarewidelyusedinmedical,electricity,IGBTdriverandso on.Theyaresuitablefor: 1.Wherethevoltageoftheinputpowersupplyisstable(voltagevariation:±10%Vin); 2.Whereisolationisnecessarybetweeninputandoutput(isolationvoltage≤5000VACor6000VDC); 3.Wheredonothashighrequirementoflineregulationandtheripple&noiseoftheoutputvoltage; Suchas,medicalcollectionisolation,highvoltagecollectioncircuitandIGBTdrivecircuit.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| G1205S-2WR3 | 2 | 12(10.8-13.2) | ±5 | 2 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - | |||
| G1209S-2WR3 | 2 | 12(10.8-13.2) | ±9 | 2 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - | |||
| G1212S-2WR3 | 2 | 12(10.8-13.2) | ±12 | 2 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - | |||
| G1215S-2WR3 | 2 | 12(10.8-13.2) | ±15 | 2 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - | |||
| G1505S-2WR3 | 2 | 15(13.5-16.5) | ±5 | 2 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - | |||
| G1509S-2WR3 | 2 | 15(13.5-16.5) | ±9 | 2 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - | |||
| G1515S-2WR3 | 2 | 15(13.5-16.5) | ±15 | 2 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - | |||
| G2405S-2WR3 | 2 | 24(21.6-26.4) | ±5 | 2 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - | |||
| G2409S-2WR3 | 2 | 24(21.6-26.4) | ±9 | 2 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - | |||
| G2412S-2WR3 | 2 | 24(21.6-26.4) | ±12 | 2 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - | |||
| G2415S-2WR3 | 2 | 24(21.6-26.4) | ±15 | 2 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - | |||
| G1203S-2WR3 | 2 | 12(10.8-13.2) | ±3.3 | 2 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - | |||
| G1224S-2WR3 | 2 | 12(10.8-13.2) | ±24 | 2 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - | |||
| G2403S-2WR3 | 2 | 24(21.6-26.4) | ±3.3 | 2 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - | |||
| G2424S-2WR3 | 2 | 24(21.6-26.4) | ±24 | 2 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - |
* For reference only. The detailed info please refer to the datasheet.
