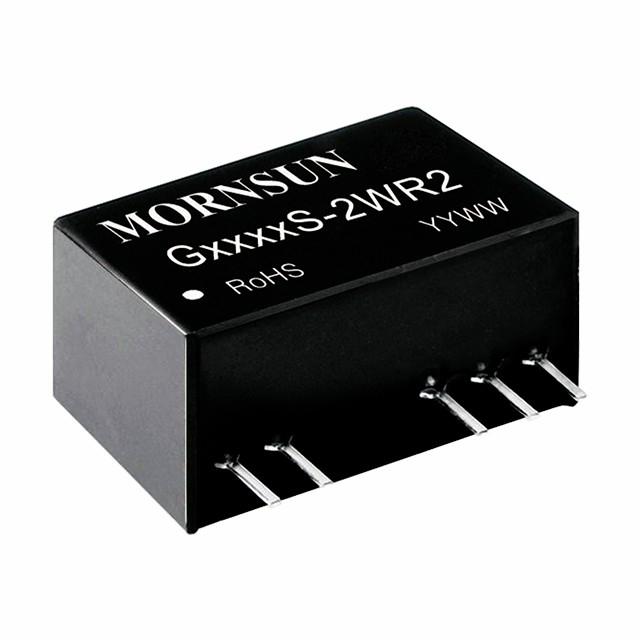

G_S-2WR2

Features

G_S-2WR2 series meets reinforced insulation requirements. They are especially designed for applications where extremely high isolation, low insulation capacitor with low leakage current in a compact package size is required. They are widely used in applications such as medical, electrical grid, IGBT driver circuits.

G_S-2WR2
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
G0505S-2WR2 2 4.5~5.5 ±5 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G0505S-2WR2 - sample request buy on line
G0509S-2WR2 2 4.5~5.5 ±9 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G0509S-2WR2 - sample request buy on line
G0512S-2WR2 2 4.5~5.5 ±12 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G0512S-2WR2 - sample request buy on line
G0515S-2WR2 2 4.5~5.5 ±15 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G0515S-2WR2 - sample request buy on line
G1205S-2WR2 2 10.8~13.2 ±5 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G1205S-2WR2 - sample request buy on line
G1209S-2WR2 2 10.8~13.2 ±9 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G1209S-2WR2 - sample request buy on line
G1212S-2WR2 2 10.8~13.2 ±12 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G1212S-2WR2 - sample request buy on line
G1215S-2WR2 2 10.8~13.2 ±15 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G1215S-2WR2 - sample request buy on line
G1509S-2WR2 2 13.5~16.5 ±9 2 6000 SIP 19.50*9.80*12.50 3D MODEL - G1509S-2WR2 - sample request buy on line
G1505S-2WR2 2 13.5~16.5 ±5 2 6000 SIP 19.50*9.80*12.50 3D MODEL - G1505S-2WR2 - sample request buy on line
G1515S-2WR2 2 13.5~16.5 ±15 2 6000 SIP 19.50*9.80*12.50 3D MODEL - G1515S-2WR2 - sample request buy on line
G2405S-2WR2 2 21.6~26.4 ±5 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G2405S-2WR2 - sample request buy on line
G2409S-2WR2 2 21.6~26.4 ±9 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G2409S-2WR2 - sample request buy on line
G2412S-2WR2 2 21.6~26.4 ±12 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G2412S-2WR2 - sample request buy on line
G2415S-2WR2 2 21.6~26.4 ±15 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G2415S-2WR2 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
G0505S-2WR2
G0509S-2WR2
G0512S-2WR2
G0515S-2WR2
G1205S-2WR2
G1209S-2WR2
G1212S-2WR2
G1215S-2WR2
G1509S-2WR2
G1505S-2WR2
G1515S-2WR2
G2405S-2WR2
G2409S-2WR2
G2412S-2WR2
G2415S-2WR2
