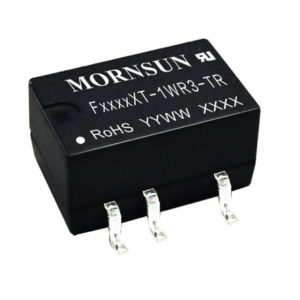

F_XT-1WR3(-TR)
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
F_XT-1WR3-TR series are specially designed for applications where an isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| F0503XT-1WR3 | 1 | 5 | 3.3 | 1 | 3000VDC | SMD | 13.20*11.40*7.25 | ||||
| F0505XT-1WR3 | 1 | 5 | 5 | 1 | 3000VDC | SMD | 13.20*11.40*7.25 | ||||
| F0509XT-1WR3 | 1 | 5 | 9 | 1 | 3000VDC | SMD | 13.20*11.40*7.25 | ||||
| F0512XT-1WR3 | 1 | 5 | 12 | 1 | 3000VDC | SMD | 13.20*11.40*7.25 | ||||
| F0515XT-1WR3 | 1 | 5 | 15 | 1 | 3000VDC | SMD | 13.20*11.40*7.25 | ||||
| F0524XT-1WR3 | 1 | 5 | 24 | 1 | 3000VDC | SMD | 13.20*11.40*7.25 | ||||
| F1205XT-1WR3 | 1 | 12 | 5 | 1 | 3000VDC | SMD | 13.20*11.40*7.25 | ||||
| F1209XT-1WR3 | 1 | 12 | 9 | 1 | 3000VDC | SMD | 13.20*11.40*7.25 | ||||
| F1212XT-1WR3 | 1 | 12 | 12 | 1 | 3000VDC | SMD | 13.20*11.40*7.25 | ||||
| F1215XT-1WR3 | 1 | 12 | 15 | 1 | 3000VDC | SMD | 13.20*11.40*7.25 | ||||
| F1224XT-1WR3 | 1 | 12 | 24 | 1 | 3000VDC | SMD | 13.20*11.40*7.25 | ||||
| F1505XT-1WR3 | 1 | 15 | 5 | 1 | 3000VDC | SMD | 13.20*11.40*7.25 | ||||
| F1515XT-1WR3 | 1 | 15 | 15 | 1 | 3000VDC | SMD | 13.20*11.40*7.25 | ||||
| F2405XT-1WR3 | 1 | 24 | 5 | 1 | 3000VDC | SMD | 13.20*11.40*7.25 | ||||
| F2409XT-1WR3 | 1 | 24 | 9 | 1 | 3000VDC | SMD | 13.20*11.40*7.25 | ||||
| F2412XT-1WR3 | 1 | 24 | 12 | 1 | 3000VDC | SMD | 13.20*11.40*7.25 | ||||
| F2415XT-1WR3 | 1 | 24 | 15 | 1 | 3000VDC | SMD | 13.20*11.40*7.25 | ||||
| F2424XT-1WR3 | 1 | 24 | 24 | 1 | 3000VDC | SMD | 13.20*11.40*7.25 |
* For reference only. The detailed info please refer to the datasheet.
