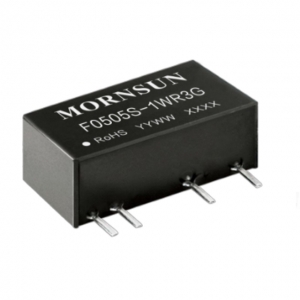

F_S-1WR3G
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
F0505S-1WR3Gisspeciallydesignedforapplicationswhereanisolatedvoltageisrequiredinadistributedpowersupplysystem.Theyare suitablefor:puredigitalcircuits,lowfrequencyanalogcircuits,relay-drivencircuitsanddataswitchingcircuits.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| F0505S-1WR3G | 1 | 5 | 5 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | |||
| F0503S-1WR3G | 1 | 5 | 3.3 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | |||
| F0509S-1WR3G | 1 | 5 | 9 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | |||
| F0512S-1WR3G | 1 | 5 | 12 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | |||
| F0515S-1WR3G | 1 | 5 | 15 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | |||
| F0524S-1WR3G | 1 | 5 | 24 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | |||
| F0303S-1WR3G | 1 | 3.3 | 3.3 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | |||
| F0305S-1WR3G | 1 | 3.3 | 5 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | |||
| F0309S-1WR3G | 1 | 3.3 | 9 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | |||
| F0312S-1WR3G | 1 | 3.3 | 12 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | |||
| F0315S-1WR3G | 1 | 3.3 | 15 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | |||
| F0324S-1WR3G | 1 | 3.3 | 24 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | |||
| F05X7S-1WR3G | 1 | 5 | 7 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - |
* For reference only. The detailed info please refer to the datasheet.
