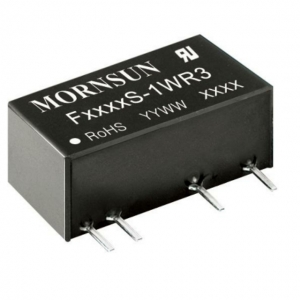

F_S-1WR3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
F_S-1WR3 series are specially designed for applications where two isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| F0503S-1WR3 | 1 | 5 | 3.3 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F0505S-1WR3 | 1 | 5 | 5 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F0509S-1WR3 | 1 | 5 | 9 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F0512S-1WR3 | 1 | 5 | 12 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F0515S-1WR3 | 1 | 5 | 15 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F0524S-1WR3 | 1 | 5 | 24 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F1203S-1WR3 | 1 | 12 | 3.3 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F1205S-1WR3 | 1 | 12 | 5 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F1209S-1WR3 | 1 | 12 | 9 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F1212S-1WR3 | 1 | 12 | 12 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F1215S-1WR3 | 1 | 12 | 15 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F1224S-1WR3 | 1 | 12 | 24 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F1505S-1WR3 | 1 | 15 | 5 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F1509S-1WR3 | 1 | 15 | 9 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F1512S-1WR3 | 1 | 15 | 12 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F1515S-1WR3 | 1 | 15 | 15 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F2403S-1WR3 | 1 | 24 | 3.3 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F2405S-1WR3 | 1 | 24 | 5 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F2409S-1WR3 | 1 | 24 | 9 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F2412S-1WR3 | 1 | 24 | 12 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F2415S-1WR3 | 1 | 24 | 15 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | ||||
| F2424S-1WR3 | 1 | 24 | 24 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 |
* For reference only. The detailed info please refer to the datasheet.
