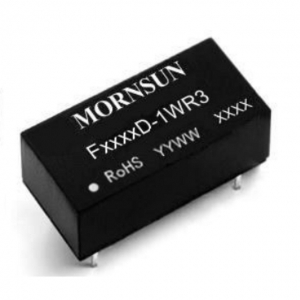

F_D-1WR3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
F_D-1WR3 series are specially designed for applications where an（ two） isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| F0505D-1WR3 | 1 | 5 | 5 | 1 | 3000VDC | SIP | 20.00*10.00*7.00 | ||||
| F0515D-1WR3 | 1 | 5 | 15 | 1 | 3000VDC | SIP | 20.00*10.00*7.00 | ||||
| F1205D-1WR3 | 1 | 12 | 5 | 1 | 3000VDC | DIP | 20.00*10.00*7.00 | - | |||
| F1212D-1WR3 | 1 | 12 | 12 | 1 | 3000VDC | DIP | 20.00*10.00*7.00 | - | |||
| F2405D-1WR3 | 1 | 24 | 5 | 1 | 3000VDC | DIP | 20.00*10.00*7.00 | - | |||
| F0503D-1WR3 | 1 | 5 | 3.3 | 1 | 3000VDC | SIP | 20.00*10.00*7.00 | ||||
| F0512D-1WR3 | 1 | 5 | 12 | 1 | 3000VDC | SIP | 20.00*10.00*7.00 |
* For reference only. The detailed info please refer to the datasheet.
