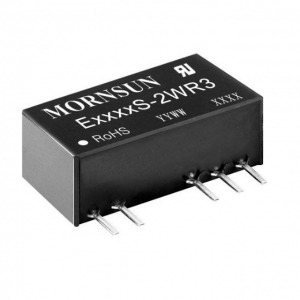

E_S-2WR3
Features
E_S-2WR3 series are designed for use in distributed power supply systems and especially suitable in applications such as pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits, where: 1. The voltage of the input power supply is relatively stable with a variation of ±10%Vin or less; 2. A high input to output isolation voltage of ≤3000VDC is necessary; 3. The requirement for a tight output regulation and low ripple & noise is not as strict.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
| E0503S-2WR3 | 2 | 5 | ±3.3 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | - | ||||
| E0505S-2WR3 | 2 | 5 | ±5 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | - | ||||
| E0509S-2WR3 | 2 | 5 | ±9 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | - | ||||
| E0512S-2WR3 | 2 | 5 | ±12 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | - | ||||
| E0515S-2WR3 | 2 | 5 | ±15 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | - | ||||
| E0524S-2WR3 | 2 | 5 | ±24 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | - | ||||
| E1203S-2WR3 | 2 | 12 | ±3.3 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | |||||
| E1205S-2WR3 | 2 | 12 | ±5 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | |||||
| E1212S-2WR3 | 2 | 12 | ±12 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | |||||
| E1215S-2WR3 | 2 | 12 | ±15 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | |||||
| E2405S-2WR3 | 2 | 24 | ±5 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | |||||
| E2412S-2WR3 | 2 | 24 | ±12 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | |||||
| E2415S-2WR3 | 2 | 24 | ±15 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | |||||
| E1207S-2WR3 | 2 | 12 | ±7.2 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | - | ||||
| E1209S-2WR3 | 2 | 12 | ±9 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | - | ||||
| E1224S-2WR3 | 2 | 12 | ±24 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | - | ||||
| E1505S-2WR3 | 2 | 15 | ±5 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | - | ||||
| E1515S-2WR3 | 2 | 15 | ±15 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | - | ||||
| E2403S-2WR3 | 2 | 24 | ±3.3 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | - | ||||
| E2407S-2WR3 | 2 | 24 | ±7.2 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | - | ||||
| E2409S-2WR3 | 2 | 24 | ±9 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | - | ||||
| E2424S-2WR3 | 2 | 24 | ±24 | 2 | 3000VDC | SIP | 19.65*7.05*10.16 | - |
* For reference only. The detailed info please refer to the datasheet.
