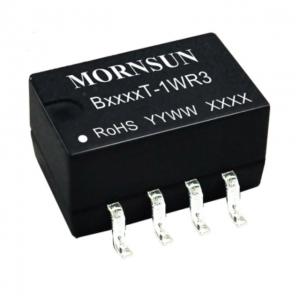

B_T-1WR3
Features
B_T-1WR3 series are specially designed for applications where an isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits.
Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
B0303T-1WR3 | 1 | 3.3 | 3.3 | 1 | 1500VDC | SMD | 13.20*11.40*7.25 | ||||
B0305T-1WR3 | 1 | 3.3 | 5 | 1 | 1500VDC | SMD | 13.20*11.40*7.25 | ||||
B0503T-1WR3 | 1 | 5 | 3.3 | 1 | 1500VDC | SMD | 13.20*11.40*7.25 | ||||
B0505T-1WR3 | 1 | 5 | 5 | 1 | 1500VDC | SMD | 13.20*11.40*7.25 | ||||
B0509T-1WR3 | 1 | 5 | 9 | 1 | 1500VDC | SMD | 13.20*11.40*7.25 | ||||
B0512T-1WR3 | 1 | 5 | 12 | 1 | 1500VDC | SMD | 13.20*11.40*7.25 | ||||
B0515T-1WR3 | 1 | 5 | 15 | 1 | 1500VDC | SMD | 13.20*11.40*7.25 | ||||
B1205T-1WR3 | 1 | 12 | 5 | 1 | 1500VDC | SMD | 13.20*11.40*7.25 | ||||
B1209T-1WR3 | 1 | 12 | 9 | 1 | 1500VDC | SMD | 13.20*11.40*7.25 | ||||
B1212T-1WR3 | 1 | 12 | 12 | 1 | 1500VDC | SMD | 13.20*11.40*7.25 | ||||
B1215T-1WR3 | 1 | 12 | 15 | 1 | 1500VDC | SMD | 13.20*11.40*7.25 |
* For reference only. The detailed info please refer to the datasheet.
