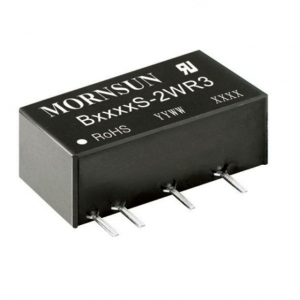

B_S-2WR3
Features
A_S B_S-2WR3 series is designed for use in distributed power supply systems and especially suitable in applications such as pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits, where: 1. The voltage of the input power supply is relatively stable with a variation of ±10%Vin or less; 2. An input to output isolation voltage of up to 1500VDC is necessary; 3. The requirement for a tight output regulation is not as strict.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
| B0503S-2WR3 | 2 | 5 | 3.3 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | - | ||||
| B0505S-2WR3 | 2 | 5 | 5 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | - | ||||
| B0507S-2WR3 | 2 | 5 | 7.2 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | - | ||||
| B0509S-2WR3 | 2 | 5 | 9 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | - | ||||
| B0512S-2WR3 | 2 | 5 | 12 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | - | ||||
| B0515S-2WR3 | 2 | 5 | 15 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | - | ||||
| B0524S-2WR3 | 2 | 5 | 24 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | - | ||||
| B1205S-2WR3 | 2 | 12 | 5 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | |||||
| B1212S-2WR3 | 2 | 12 | 12 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | |||||
| B1215S-2WR3 | 2 | 12 | 15 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | |||||
| B1224S-2WR3 | 2 | 12 | 24 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | |||||
| B2405S-2WR3 | 2 | 24 | 5 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | |||||
| B2412S-2WR3 | 2 | 24 | 12 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | |||||
| B2415S-2WR3 | 2 | 24 | 15 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | |||||
| B2424S-2WR3 | 2 | 24 | 24 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | |||||
| B1209S-2WR3 | 2 | 12 | 9 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | - | ||||
| B1505S-2WR3 | 2 | 15 | 5 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | - | ||||
| B1515S-2WR3 | 2 | 15 | 15 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | - | ||||
| B1524S-2WR3 | 2 | 15 | 24 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | - | ||||
| B2403S-2WR3 | 2 | 24 | 3.3 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | - | ||||
| B2409S-2WR3 | 2 | 24 | 9 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | - | ||||
| B1203S-2WR3 | 2 | 15 | 3.3 | 1 | 1500VDC | SIP | 19.65*7.05*10.16 | - |
* For reference only. The detailed info please refer to the datasheet.
