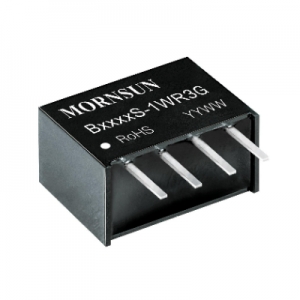

B_S-1WR3G
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| B0503S-1WR3G | 1 | 5 | 3.3 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B0505S-1WR3G | 1 | 5 | 5 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B0509S-1WR3G | 1 | 5 | 9 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B0512S-1WR3G | 1 | 5 | 12 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B0515S-1WR3G | 1 | 5 | 15 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B0524S-1WR3G | 1 | 5 | 24 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B1203S-1WR3G | 1 | 12 | 3.3 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B1205S-1WR3G | 1 | 12 | 5 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B1209S-1WR3G | 1 | 12 | 9 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B1212S-1WR3G | 1 | 12 | 12 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B1215S-1WR3G | 1 | 12 | 15 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B1224S-1WR3G | 1 | 12 | 24 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B1505S-1WR3G | 1 | 15 | 5 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B1509S-1WR3G | 1 | 15 | 9 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B1512S-1WR3G | 1 | 15 | 12 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B1515S-1WR3G | 1 | 15 | 15 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B1524S-1WR3G | 1 | 15 | 24 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B2403S-1WR3G | 1 | 24 | 3.3 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B2405S-1WR3G | 1 | 24 | 5 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B2409S-1WR3G | 1 | 24 | 9 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B2412S-1WR3G | 1 | 24 | 12 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B2415S-1WR3G | 1 | 24 | 15 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B2424S-1WR3G | 1 | 24 | 24 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B0303S-1WR3G | 1 | 3.3 (2.97-3.63) | 3.3 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B0305S-1WR3G | 1 | 3.3 (2.97-3.63) | 5 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B0309S-1WR3G | 1 | 3.3 (2.97-3.63) | 9 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B0312S-1WR3G | 1 | 3.3 (2.97-3.63) | 12 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B0315S-1WR3G | 1 | 3.3 (2.97-3.63) | 15 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - | |||
| B0324S-1WR3G | 1 | 3.3 (2.97-3.63) | 24 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | - |
* For reference only. The detailed info please refer to the datasheet.
