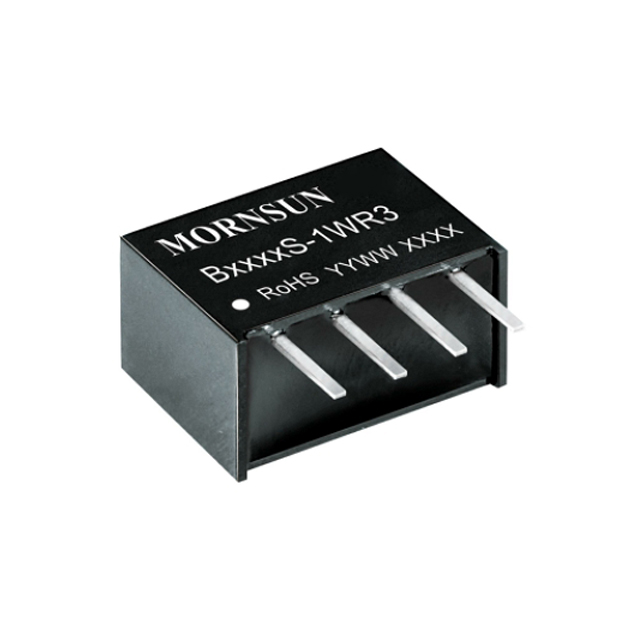

B_S-1WR3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
B_S-1WR3 series is specially designed for applications where an isolated voltage is required in a distributed power supply system. They are suitable for pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| B0503S-1WR3 | 1 | 5 | 3.3 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B0505S-1WR3 | 1 | 5 | 5 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B0509S-1WR3 | 1 | 5 | 9 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B0512S-1WR3 | 1 | 5 | 12 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B0515S-1WR3 | 1 | 5 | 15 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B0524S-1WR3 | 1 | 5 | 24 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B1203S-1WR3 | 1 | 12 | 3.3 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B1205S-1WR3 | 1 | 12 | 5 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B1209S-1WR3 | 1 | 12 | 9 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B1212S-1WR3 | 1 | 12 | 12 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B1215S-1WR3 | 1 | 12 | 15 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B1224S-1WR3 | 1 | 12 | 24 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B1505S-1WR3 | 1 | 15 | 5 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B1509S-1WR3 | 1 | 15 | 9 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B1512S-1WR3 | 1 | 15 | 12 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B1515S-1WR3 | 1 | 15 | 15 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B2403S-1WR3 | 1 | 24 | 3.3 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B2405S-1WR3 | 1 | 24 | 5 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B2409S-1WR3 | 1 | 24 | 9 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B2412S-1WR3 | 1 | 24 | 12 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B2415S-1WR3 | 1 | 24 | 15 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 | ||||
| B2424S-1WR3 | 1 | 24 | 24 | 1 | 1500VDC | SIP | 11.60*6.00*10.16 |
* For reference only. The detailed info please refer to the datasheet.
