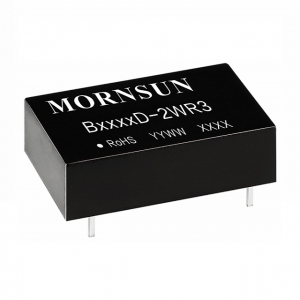

B_D-2WR3
Features
A_D-2WR3 & B_D-2WR3 series are specially designed for applications where an (two) isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
| B0503D-2WR3 | 2 | 5 | 3.3 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - | ||||
| B0505D-2WR3 | 2 | 5 | 5 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - | ||||
| B0509D-2WR3 | 2 | 5 | 9 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - | ||||
| B0512D-2WR3 | 2 | 5 | 12 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - | ||||
| B0515D-2WR3 | 2 | 5 | 15 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - | ||||
| B0524D-2WR3 | 2 | 5 | 24 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - | ||||
| B0303D-2WR3 | 2 | 3.3 | 3.3 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - | ||||
| B0305D-2WR3 | 2 | 3.3 | 5 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - | ||||
| B1205D-2WR3 | 2 | 12 | 5 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - | ||||
| B1209D-2WR3 | 2 | 12 | 9 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - | ||||
| B1212D-2WR3 | 2 | 12 | 12 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - | ||||
| B1215D-2WR3 | 2 | 12 | 15 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - | ||||
| B1224D-2WR3 | 2 | 12 | 24 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - | ||||
| B1505D-2WR3 | 2 | 15 | 5 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - | ||||
| B1509D-2WR3 | 2 | 15 | 9 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - | ||||
| B1515D-2WR3 | 2 | 15 | 15 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - | ||||
| B2405D-2WR3 | 2 | 24 | 5 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - | ||||
| B2409D-2WR3 | 2 | 24 | 9 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - | ||||
| B2412D-2WR3 | 2 | 24 | 12 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - | ||||
| B2415D-2WR3 | 2 | 24 | 15 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - | ||||
| B2424D-2WR3 | 2 | 24 | 24 | 1 | 1500VDC | DIP | 20.32*10.16*8.20 | - |
* For reference only. The detailed info please refer to the datasheet.
