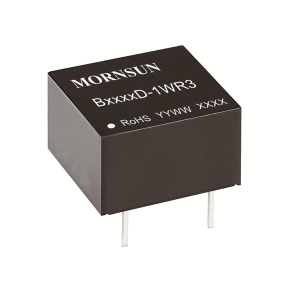

B_D-1WR3
Features
B_D-1WR3 series are specially designed for applications where an isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits.
Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
B1203D-1WR3 | 1 | 12 | 3.3 | 1 | 1500VDC | DIP | 12.70*10.16*8.20 | |||||
B1205D-1WR3 | 1 | 12 | 5 | 1 | 1500VDC | DIP | 12.70*10.16*8.20 | |||||
B1212D-1WR3 | 1 | 12 | 12 | 1 | 1500VDC | DIP | 12.70*10.16*8.20 | |||||
B1215D-1WR3 | 1 | 12 | 15 | 1 | 1500VDC | DIP | 12.70*10.16*8.20 | |||||
B1224D-1WR3 | 1 | 12 | 24 | 1 | 1500VDC | DIP | 12.70*10.16*8.20 | |||||
B2403D-1WR3 | 1 | 24 | 3.3 | 1 | 1500VDC | DIP | 12.70*10.16*8.20 | |||||
B2405D-1WR3 | 1 | 24 | 5 | 1 | 1500VDC | DIP | 12.70*10.16*8.20 | |||||
B2412D-1WR3 | 1 | 24 | 12 | 1 | 1500VDC | DIP | 12.70*10.16*8.20 | |||||
B2415D-1WR3 | 1 | 24 | 15 | 1 | 1500VDC | DIP | 12.70*10.16*8.20 | |||||
B2424D-1WR3 | 1 | 24 | 24 | 1 | 1500VDC | DIP | 12.70*10.16*8.20 | |||||
B1209D-1WR3 | 1 | 12 | 9 | 1 | 1500VDC | DIP | 12.70*10.16*8.20 | - | ||||
B1505D-1WR3 | 1 | 15 | 5 | 1 | 1500VDC | DIP | 12.70*10.16*8.20 | - | ||||
B1509D-1WR3 | 1 | 15 | 9 | 1 | 1500VDC | DIP | 12.70*10.16*8.20 | - | ||||
B1515D-1WR3 | 1 | 15 | 15 | 1 | 1500VDC | DIP | 12.70*10.16*8.20 | - | ||||
B2409D-1WR3 | 1 | 24 | 9 | 1 | 1500VDC | DIP | 12.70*10.16*8.20 | - |
* For reference only. The detailed info please refer to the datasheet.
