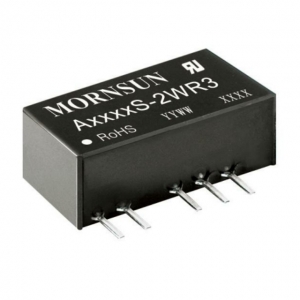

A_S-2WR3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
A_S -2WR3 series is designed for use in distributed power supply systems and especially suitable in applications such as pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits, where: 1. The voltage of the input power supply is relatively stable with a variation of ±10%Vin or less; 2. An input to output isolation voltage of up to 1500VDC is necessary; 3. The requirement for a tight output regulation is not as strict.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| A1203S-2WR3 | 2 | 12 | ±3.3 | 2 | 1500VDC | SIP | 19.65*7.05*10.16 | ||||
| A1205S-2WR3 | 2 | 12 | ±5 | 2 | 1500VDC | SIP | 19.65*7.05*10.16 | ||||
| A1212S-2WR3 | 2 | 12 | ±12 | 2 | 1500VDC | SIP | 19.65*7.05*10.16 | ||||
| A1215S-2WR3 | 2 | 12 | ±15 | 2 | 1500VDC | SIP | 19.65*7.05*10.16 | ||||
| A2405S-2WR3 | 2 | 24 | ±5 | 2 | 1500VDC | SIP | 19.65*7.05*10.16 | ||||
| A2412S-2WR3 | 2 | 24 | ±12 | 2 | 1500VDC | SIP | 19.65*7.05*10.16 | ||||
| A2415S-2WR3 | 2 | 24 | ±15 | 2 | 1500VDC | SIP | 19.65*7.05*10.16 |
* For reference only. The detailed info please refer to the datasheet.
