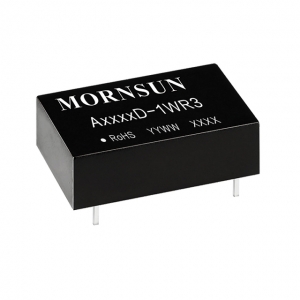

A_D-1WR3
Features
A_ D-1WR3 series are specially designed for applications where two isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
| A0503D-1WR3 | 1 | 5 | ±3.3 | 2 | 1500VDC | DIP | 20.00*10.00*7.00 | - | ||||
| A0505D-1WR3 | 1 | 5 | ±5 | 2 | 1500VDC | DIP | 20.00*10.00*7.00 | - | ||||
| A0509D-1WR3 | 1 | 5 | ±9 | 2 | 1500VDC | DIP | 20.00*10.00*7.00 | - | ||||
| A0512D-1WR3 | 1 | 5 | ±12 | 2 | 1500VDC | DIP | 20.00*10.00*7.00 | - | ||||
| A0515D-1WR3 | 1 | 5 | ±15 | 2 | 1500VDC | DIP | 20.00*10.00*7.00 | - | ||||
| A1205D-1WR3 | 1 | 12 | ±5 | 2 | 1500VDC | DIP | 20.00*10.00*7.00 | - | ||||
| A1212D-1WR3 | 1 | 12 | ±12 | 2 | 1500VDC | DIP | 20.00*10.00*7.00 | - | ||||
| A1224D-1WR3 | 1 | 12 | ±24 | 2 | 1500VDC | DIP | 20.00*10.00*7.00 | - | ||||
| A2409D-1WR3 | 1 | 24 | ±9 | 2 | 1500VDC | DIP | 20.00*10.00*7.00 | - | ||||
| A2412D-1WR3 | 1 | 24 | ±12 | 2 | 1500VDC | DIP | 20.00*10.00*7.00 | - | ||||
| A2415D-1WR3 | 1 | 24 | ±15 | 2 | 1500VDC | DIP | 20.00*10.00*7.00 | - | ||||
| A1524D-1WR3 | 1 | 15 | ±24 | 2 | 1500VDC | DIP | 20.00*10.00*7.00 | - |
* For reference only. The detailed info please refer to the datasheet.
