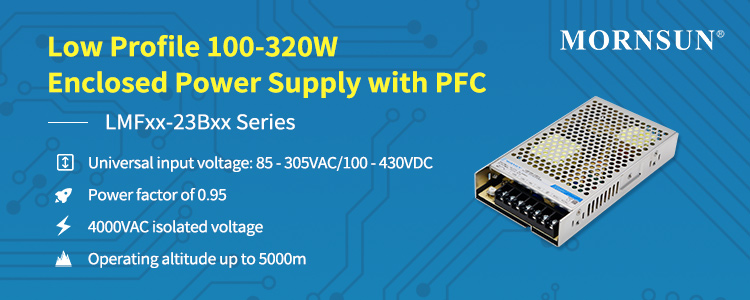

100-320W AC/DC enclosed power supply LMFxx-23Bxx in 305RAC family, reliable under all conditions

305VAC Input 100-320W LMFxx-23Bxx with PFC for All Challenging Conditions.jpg


Production


The LMFxx-23Bxx series of enclosed power supply in MORNSUN 305RAC(reliable under all conditions) family, can be used not only in the normal operating conditions, but also in applications with higher requirements for input voltage, temperature, humidity, altitude, and electromagnetic interference for long time. The input voltage range is as wide as 85-305VAC, so it is reliable for long time when the voltage exceeds 264VAC due to power grid fluctuations or some operation conditions such as generators. And the power range covers 100, 150, 200, 320W. At the same time, it has the advantages of isolation voltage as high as 4000VAC and high PF (power factor) of 0.95. It accepts AC or DC input, and meets UL62368, EN62368, CB62368 and GB4943certification standards.


Main Challenging Condition:


Voltage Fluctuation

The input voltage range is 85-305VAC/100-430VDC, which solves the three major shortcomings of conventional 85-264VAC input products:

1,The universal input voltage of 85-305VAC covers the standard voltage of 110/220/277VAC.)

2, It solves the power failure caused by voltage fluctuations in grid power distribution or generator.

3, It can also work normally under the transient high input voltage (the input voltage exceeds 264VAC when the device is turned on or turned off).


High Altitude

It meets the 5000m altitude application requirement, and the product has passed high/low temperature altitude test, long-term aging test, etc.


EMI

1,  EMI meets CLASS B reducing harm to the human body and interference to other equipment;

2,  Surge immunity is up to 4KV, strong anti-interference ability is suitable for harsh environment applications.


High/Low Temperature

Wide operating temperature range is -30℃ to +70℃. The product can still work at full load and has a strong start-up ability while at low temperature of -30℃ ; when it is running at 70℃, the temperature rise of product components is low and the service life is long.


In order to meet the diversified application requirement, MORNSUN has simultaneously launched extended models:

LMFxx-23Bxx-Q: It has three-proof paint process, and features excellent insulation, multiple resistance of moisture, leakage, vibration, dust, corrosion, aging, corona and other properties, which is suitable for harsh industrial environments.

LMFxx-23Bxx-C:  It has terminal cover that can prevent the human from touching the terminal by mistake.



Application

It is widely used in industrial automation equipment, control systems, electromechanical equipment, instrumentation, smart building, household appliances and other terminal products.

305VAC Input 100-320W LMFxx-23Bxx with PFC for All Challenging Conditions.jpg


Features

●     Universal input voltage: 85 - 305VAC/100 - 430VDC

●     Operating temperature range: -30℃ to +70℃

     Built-in active PFC function: PF of 0.95/230VAC

     I/O isolation voltage: 4000VAC

     Regulated output, low ripple and noise and standby power consumption

●     Output short circuit, over-current, over-voltage, over-temperature protections

●     Safety according to IEC/EN/UL62368, GB4943 (Pending)

●     EMI meet CISPR32/EN55032 CLASS B

●     Withstand 5G vibration test

●     Operating altitude up to 5000m

●     Three-proof customization is acceptable






Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Nominal Vout and Io(V/A) Operating Temperature No. of Outputs Efficiency(%) Isolation(VAC) Footprint & 3D Certification Datasheet Sample
LMF150-23B12 150 85 - 305VAC/120 - 430VDC 12V/12.5A -30℃ to +70℃ 1 85.5 4000 3D MODEL Pending LMF150-23B12
LMF150-23B15 150 85 - 305VAC/120 - 430VDC 15V/10A -30℃ to +70℃ 1 86 4000 3D MODEL Pending LMF150-23B15
LMF150-23B24 150 85 - 305VAC/120 - 430VDC 24V/6.3A -30℃ to +70℃ 1 87 4000 3D MODEL Pending LMF150-23B24
LMF150-23B48 150 85 - 305VAC/120 - 430VDC 48V/3.2A -30℃ to +70℃ 1 88 4000 3D MODEL Pending LMF150-23B48
LMF200-23B12 200 85~305VAC/120~430VDC 12V/16.7A -30℃ to +70℃ 1 88 4000 Footprint 3D MODEL Pending LMF200-23B12
LMF200-23B15 200 85~305VAC/120~430VDC 15V/13.4A -30℃ to +70℃ 1 88 4000 Footprint 3D MODEL Pending LMF200-23B15
LMF200-23B24 200 85~305VAC/120~430VDC 24V/8.4A -30℃ to +70℃ 1 88 4000 Footprint 3D MODEL Pending LMF200-23B24
LMF200-23B48 200 85~305VAC/120~430VDC 48V/4.2A -30℃ to +70℃ 1 88 4000 Footprint 3D MODEL Pending LMF200-23B48
LMF320-23B05 320 85~305VAC/120~430VDC 5V/60A -30℃ to +70℃ 1 84 4000 Footprint - LMF320-23B05
LMF320-23B12 320 85~305VAC/120~430VDC 12V/26.7A -30℃ to +70℃ 1 86.5 4000 Footprint - LMF320-23B12
LMF320-23B15 320 85~305VAC/120~430VDC 15V/21.4A -30℃ to +70℃ 1 89 4000 Footprint - LMF320-23B15
LMF320-23B24 320 85~305VAC/120~430VDC 24V/13.4A -30℃ to +70℃ 1 88.5 4000 Footprint - LMF320-23B24
LMF320-23B48 320 85~305VAC/120~430VDC 48V/6.7A -30℃ to +70℃ 1 89 4000 Footprint - LMF320-23B48
Series
LMF150-23B12
LMF150-23B15
LMF150-23B24
LMF150-23B48
LMF200-23B12
LMF200-23B15
LMF200-23B24
LMF200-23B48
LMF320-23B05
LMF320-23B12
LMF320-23B15
LMF320-23B24
LMF320-23B48
