40-120W 85 - 900VAC Input Voltage Power Supply PVAxx-27Bxx Series for Coal Mines Applications

Mornsun released a new high voltage input dc dc converter PVAxx-27Bxx series which is specialized for the electrical equipment in coal mining. The new series PVAxx-27Bxx covers output powers of 40W, 70W, 120W now.

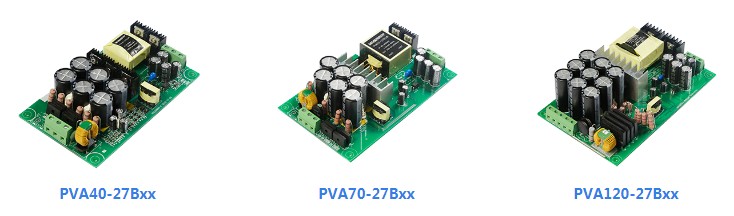

PVAxx-27Bxx Series


High voltage input dc dc converter PVAxx-27Bxx series has an ultra-wide and ultra-high input voltage range of 85-900 VAC, which meets the requirements of voltage fluctuations such as 127/220/380/660VAC in coal mining. The dimensions of the high voltage input dc dc converter PVA40-27Bxx series(138*82*32mm) and PVA70-27Bxx series (155*95*41mm) are smaller than the traditional solution of industrial frequency transformer with AC/DC power supplies. Besides, they only have one input port and don't need to change the wire, which can completely avoid the risk of a wrong connection and save the cost of customers’application.

In addition, the PVAxx-27Bxx series has an isolation voltage of 4000VAC and an industrial operating temperature range of -40℃ to +70℃, and its EMS EFT/Surge is ±4KV. Protections of output short circuit, over-current, and over-voltage are included.

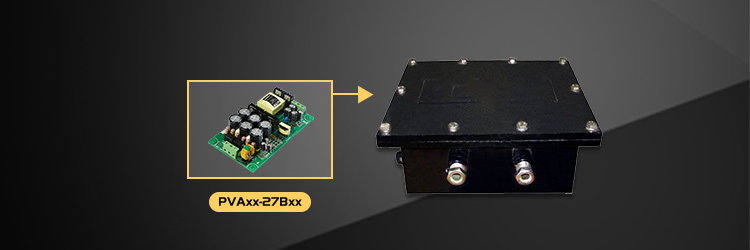

Applications of High Input Voltage Power Supply PVAxx-27Bxx Series


Widely used in applications of the coal mining control system and security industry.



Features of High Input Voltage Power Supply PVAxx-27Bxx Series

Specially designed for electrical equipment in coal mining
Ultra-wide 85 - 900VAC input voltage range
Industrial grade operating temperature: -25℃ to +70℃
High I/O isolation test voltage of 4000VAC
EMS EFT/Surge: ±4KV
High reliability, high efficiency, long lifespan
Output short circuit, over-current, and over-voltage protection

High Input Voltage Power Supply PVAxx-27Bxx Series



Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Operating Temperature No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample
PVA120-27B24 120 85 - 900VAC -25℃ ~ +70℃ 1 4000VAC Open frame 170.00*107.00*52.00mm 3D MODEL Footprint - PVA120-27B24
PVA120-27B28 120 85 - 900VAC -25℃ ~ +70℃ 1 4000VAC Open frame 170.00*107.00*52.00mm 3D MODEL Footprint - PVA120-27B28
PVA120-27B35 120 85 - 900VAC -25℃ ~ +70℃ 1 4000VAC Open frame 170.00*107.00*52.00mm 3D MODEL Footprint - PVA120-27B35
PVA40-27B18 40 85 - 900VAC -25℃ ~ +70℃ 1 4000VAC Open frame 138.00*82.00*32.00mm 3D MODEL Footprint - PVA40-27B18
PVA40-27B24 40 85 - 900VAC -25℃ ~ +70℃ 1 4000VAC Open frame 138.00*82.00*32.00mm 3D MODEL Footprint - PVA40-27B24
PVA40-27B30 40 85 - 900VAC -25℃ ~ +70℃ 1 4000VAC Open frame 138.00*82.00*32.00mm 3D MODEL Footprint - PVA40-27B30
PVA70-27B24 70 85 - 900VAC -25℃ ~ +70℃ 1 4000VAC Open frame 155.00*95.00*41.00mm 3D MODEL Footprint - PVA70-27B24
PVA70-27B28 70 85 - 900VAC -25℃ ~ +70℃ 1 4000VAC Open frame 155.00*95.00*41.00mm 3D MODEL Footprint - PVA70-27B28
PVA70-27B35 70 85 - 900VAC -25℃ ~ +70℃ 1 4000VAC Open frame 155.00*95.00*41.00mm 3D MODEL Footprint - PVA70-27B35
Series
PVA120-27B24
PVA120-27B28
PVA120-27B35
PVA40-27B18
PVA40-27B24
PVA40-27B30
PVA70-27B24
PVA70-27B28
PVA70-27B35
