SMD Non-isolated Switching Regulators K78_T-500R3/1000R3 Series

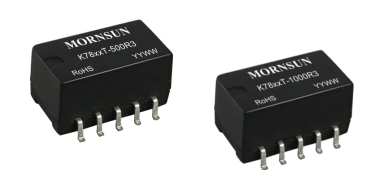

    MORNSUN K78 series are non-isolated regulators known for compact size, high efficiency and compatible with traditional LM78xx linear regulators. New SMD packaged K78_T-500R3/K78_T-1000R3 series are introduced to meet the reflow soldering production requirements.
    The peak temperature of reflow soldering is Tc≤245 ℃ and keeps 60s (Max.) above 217 ℃, which meets the IPC/JEDEC J-STD-020D.1 standard. Dimension is 15.24*11.40*8.25mm (about 0.6*0.45*0.32 inch). Efficiency is up to 95% and operating temperature ranges from -40 to +85 ° C, without additional heat sink.

    Besides, these K78_T-R3 series also provide a wide input voltage range (4.75-36V), continuous short-circuit protection, adjustable output voltage (±10%) and remote voltage control and so on, which can be widely used in industrial control, grid power, instrumentation, mining and other related industries.


Features:
>SMD package
>High efficiency up to 95%
>No-load input current as low as 0.2mA
>Operating temperature range: -40℃ to +85℃
>Output short circuit protection
>Meet  EN62368 (pending)


Please refer to the technical manual for specific product parameters:

Series Vin(VDC) Vout(VDC) Iout(mA) No. of Outputs Package Dimension(mm) Footprint & 3D Certification Datasheet Sample
K7801T-1000R3 4.75~32 1.5 1000 1 SMD 15.24*11.40*8.25 3D MODEL Footprint PCB Symbol - K7801T-1000R3
K7801T-500R3 4.75~28 1.5 500 1 SMD 15.24*11.40*8.25 3D MODEL Footprint PCB Symbol - K7801T-500R3
K7802T-1000R3 4.75~32 2.5 1000 1 SMD 15.24*11.40*8.25 3D MODEL Footprint PCB Symbol - K7802T-1000R3
K7802T-500R3 4.75~32 2.5 500 1 SMD 15.24*11.40*8.25 3D MODEL Footprint PCB Symbol - K7802T-500R3
K7803T-1000R3 6.5~36 3.3 1000 1 SMD 15.24*11.40*8.25 3D MODEL Footprint PCB Symbol - K7803T-1000R3
K7803T-500R3 4.75~36 3.3 500 1 SMD 15.24*11.40*8.25 3D MODEL Footprint PCB Symbol - K7803T-500R3
K7805T-1000R3 8~36 5 1000 1 SMD 15.24*11.40*8.25 3D MODEL Footprint PCB Symbol - K7805T-1000R3
K7805T-500R3 6.5~36 5 500 1 SMD 15.24*11.40*8.25 3D MODEL Footprint PCB Symbol - K7805T-500R3
K7809T-1000R3 13~36 9 1000 1 SMD 15.24*11.40*8.25 3D MODEL Footprint PCB Symbol - K7809T-1000R3
K7809T-500R3 12~36 9 500 1 SMD 15.24*11.40*8.25 3D MODEL Footprint PCB Symbol - K7809T-500R3
K7812T-1000R3 16~36 12 800 1 SMD 15.24*11.40*8.25 3D MODEL Footprint PCB Symbol - K7812T-1000R3
K7812T-500R3 15~36 12 500 1 SMD 15.24*11.40*8.25 3D MODEL Footprint PCB Symbol - K7812T-500R3
K7815T-500R3 19~36 15 500 1 SMD 15.24*11.40*8.25 3D MODEL Footprint PCB Symbol - K7815T-500R3
K78X2T-1000R3 4.75~32 1.8 1000 1 SMD 15.24*11.40*8.25 3D MODEL Footprint PCB Symbol - K78X2T-1000R3
K78X2T-500R3 4.75~28 1.8 500 1 SMD 15.24*11.40*8.25 3D MODEL Footprint PCB Symbol - K78X2T-500R3
K78X6T-1000R3 10~36 6.5 1000 1 SMD 15.24*11.40*8.25 3D MODEL Footprint PCB Symbol - K78X6T-1000R3
K78X6T-500R3 8~36 6.5 500 1 SMD 15.24*11.40*8.25 3D MODEL Footprint PCB Symbol - K78X6T-500R3
