In the harsh railway environment, power supplies are required to be designed for the extreme working conditions of railway applications and are designed to meet the stringent conditions of EN50155. Mornsun provides EN50155-compliant power supplies for the railway industry with output power ranging from 6W to 250W. These railway DC/DC power converters feature compact size, low ripple noise and excellent EMC performance, and are designed to comply with higher isolation requirements for railway station, on-board and trackside applications.
Railway Applications
Trackside
Signals
Electricity
Station
Centralized signal
Monitoring System
Environmental
Monitoring System

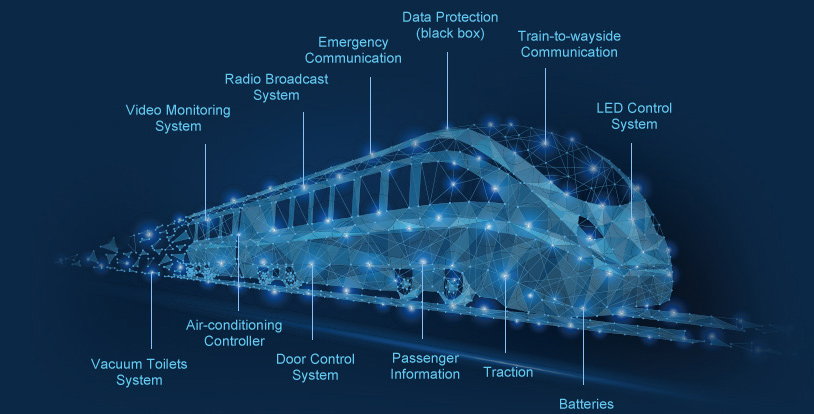

On-board
Selection Guide
There are 107 results in total. Please see the list as below.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation(VDC) | Package | Dimension(mm) | Certification | Datasheet | Sample | Buy |
| URA1D05YMD-6WR3 | 6 | 40~160 | ±5 | 2 | 2250 | DIP | 25.40*25.40*11.70 |
 -
|
|
|
|
| URA1D12YMD-6WR3 | 6 | 40~160 | ±12 | 2 | 2250 | DIP | 25.40*25.40*11.70 |
-
|
|
|
|
| URA1D15YMD-6WR3 | 6 | 40~160 | ±15 | 2 | 2250 | DIP | 25.40*25.40*11.70 |
-
|
|
|
|
| URB1D05YMD-6WR3 | 6 | 40~160 | 5 | 1 | 2250 | DIP | 25.40*25.40*11.70 |
-
|
|
|
|
| URB1D12YMD-6WR3 | 6 | 40~160 | 12 | 1 | 2250 | DIP | 25.40*25.40*11.70 |
-
|
|
|
|
| URB1D15YMD-6WR3 | 6 | 40~160 | 15 | 1 | 2250 | DIP | 25.40*25.40*11.70 |
-
|
|
|
|
| URB1D24YMD-6WR3 | 6 | 40~160 | 24 | 1 | 2250 | DIP | 25.40*25.40*11.70 |
-
|
|
|
|
| URB1D03LMD-10WR3 | 10 | 40~160 | 3.3 | 1 | 2250 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URB1D05LMD-10WR3 | 10 | 40~160 | 5 | 1 | 2250 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URB1D12LMD-10WR3 | 10 | 40~160 | 12 | 1 | 2250 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URB1D15LMD-10WR3 | 10 | 40~160 | 15 | 1 | 2250 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URB1D24LMD-10WR3 | 10 | 40~160 | 24 | 1 | 2250 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URB1D03LMD-15WR3 | 15 | 40~160 | 3.3 | 1 | 2250 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URB1D05LMD-15WR3 | 15 | 40~160 | 5 | 1 | 2250 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URB1D12LMD-15WR3 | 15 | 40~160 | 12 | 1 | 2250 | DIP | 50.80*25.40*11.80 |
  -
|
|
|
|
| URB1D15LMD-15WR3 | 15 | 40~160 | 15 | 1 | 2250 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URB1D24LMD-15WR3 | 15 | 40~160 | 24 | 1 | 2250 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URB1D03LD-20WR3 | 20 | 40~160 | 3.3 | 1 | 2250 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URB1D05LD-20WR3 | 20 | 40~160 | 5 | 1 | 2250 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URB1D12LD-20WR3 | 20 | 40~160 | 12 | 1 | 2250 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URB1D15LD-20WR3 | 20 | 40~160 | 15 | 1 | 2250 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URB1D24LD-20WR3 | 20 | 40~160 | 24 | 1 | 2250 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URB1D03LMD-20WR3 | 20 | 40~160 | 3.3 | 1 | 2250 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URB1D05LMD-20WR3 | 20 | 40~160 | 5 | 1 | 2250 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URB1D12LMD-20WR3 | 20 | 40~160 | 12 | 1 | 2250 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URB1D15LMD-20WR3 | 20 | 40~160 | 15 | 1 | 2250 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URB1D24LMD-20WR3 | 20 | 40~160 | 24 | 1 | 2250 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URE1D12LD-20WR3 | 20 | 40~160 | ±12 | 2 | 3000 | DIP | 50.80*25.40*11.80 | - |
|
|
|
| URE1D15LD-20WR3 | 20 | 40~160 | ±15 | 2 | 3000 | DIP | 50.80*25.40*11.80 | - |
|
|
|
| URE1D24LD-20WR3 | 20 | 40~160 | ±24 | 2 | 3000 | DIP | 50.80*25.40*11.80 | - |
|
|
|
| URF1D03LD-40WR3 | 40 | 40~160 | 3.3 | 1 | 3000 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URF1D05LD-40WR3 | 40 | 40~160 | 5 | 1 | 3000 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URF1D12LD-40WR3 | 40 | 40~160 | 12 | 1 | 3000 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URF1D15LD-40WR3 | 40 | 40~160 | 15 | 1 | 3000 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URF1D24LD-40WR3 | 40 | 40~160 | 24 | 1 | 3000 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URF1D48LD-40WR3 | 40 | 40~160 | 48 | 1 | 3000 | DIP | 50.80*25.40*11.80 |
-
|
|
|
|
| URF1D03QB-50WR3 | 50 | 43~160 | 3.3 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 |
-
|
|
|
|
| URF1D05QB-50WR3 | 50 | 43~160 | 5 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 |
-
|
|
|
|
| URF1D12QB-50WR3 | 50 | 43~160 | 12 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 |
-
|
|
|
|
| URF1D15QB-50WR3 | 50 | 43~160 | 15 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 |
-
|
|
|
|
| URF1D24QB-50WR3 | 50 | 43~160 | 24 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 |
-
|
|
|
|
| URF1D48QB-50WR3 | 50 | 43~160 | 48 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 |
-
|
|
|
|
| URF1D03QB-50WHR3 | 50 | 43~160 | 3.3 | 1 | 3000VAC | DIP（With heatsink） | 60.80*39.20*27.80 |
-
|
|
|
|
| URF1D05QB-50WHR3 | 50 | 43~160 | 5 | 1 | 3000VAC | DIP（With heatsink） | 60.80*39.20*27.80 |
-
|
|
|
|
| URF1D12QB-50WHR3 | 50 | 43~160 | 12 | 1 | 3000VAC | DIP（With heatsink） | 60.80*39.20*27.80 |
-
|
|
|
|
| URF1D15QB-50WHR3 | 50 | 43~160 | 15 | 1 | 3000VAC | DIP（With heatsink） | 60.80*39.20*27.80 |
-
|
|
|
|
| URF1D24QB-50WHR3 | 50 | 43~160 | 24 | 1 | 3000VAC | DIP（With heatsink） | 60.80*39.20*27.80 |
-
|
|
|
|
| URF1D48QB-50WHR3 | 50 | 43~160 | 48 | 1 | 3000VAC | DIP（With heatsink） | 60.80*39.20*27.80 |
-
|
|
|
|
| URF1D03QB-75WR3 | 75 | 43~160 | 3.3 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 |
-
|
|
|
|
| URF1D05QB-75WR3 | 75 | 43~160 | 5 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 |
-
|
|
|
|
| URF1D12QB-75WR3 | 75 | 43~160 | 12 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 |
-
|
|
|
|
| URF1D15QB-75WR3 | 75 | 43~160 | 15 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 |
-
|
|
|
|
| URF1D24QB-75WR3 | 75 | 43~160 | 24 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 |
-
|
|
|
|
| URF1D48QB-75WR3 | 75 | 43~160 | 48 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 |
-
|
|
|
|
| URF1D03QB-75WHR3 | 75 | 43~160 | 3.3 | 1 | 3000VAC | DIP（With heatsink） | 60.80*39.20*27.80 |
-
|
|
|
|
| URF1D05QB-75WHR3 | 75 | 43~160 | 5 | 1 | 3000VAC | DIP（With heatsink） | 60.80*39.20*27.80 |
-
|
|
|
|
| URF1D12QB-75WHR3 | 75 | 43~160 | 12 | 1 | 3000VAC | DIP（With heatsink） | 60.80*39.20*27.80 |
-
|
|
|
|
| URF1D15QB-75WHR3 | 75 | 43~160 | 15 | 1 | 3000VAC | DIP（With heatsink） | 60.80*39.20*27.80 |
-
|
|
|
|
| URF1D24QB-75WHR3 | 75 | 43~160 | 24 | 1 | 3000VAC | DIP（With heatsink） | 60.80*39.20*27.80 |
-
|
|
|
|
| URF1D48QB-75WHR3 | 75 | 43~160 | 48 | 1 | 3000VAC | DIP（With heatsink） | 60.80*39.20*27.80 |
-
|
|
|
|
| URF1D03QB-100WR3 | 100 | 43~160 | 3.3 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 |
-
|
|
|
|
| URF1D05QB-100WR3 | 100 | 43~160 | 5 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 |
-
|
|
|
|
| URF1D12QB-100WR3 | 100 | 43~160 | 12 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 |
-
|
|
|
|
| URF1D15QB-100WR3 | 100 | 43~160 | 15 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 |
-
|
|
|
|
| URF1D24QB-100WR3 | 100 | 43~160 | 24 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 |
-
|
|
|
|
| URF1D48QB-100WR3 | 100 | 43~160 | 48 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 |
-
|
|
|
|
| URF1D03QB-100WHR3 | 100 | 43~160 | 3.3 | 1 | 3000VAC | DIP（With heatsink） | 60.80*39.20*27.80 |
-
|
|
|
|
| URF1D05QB-100WHR3 | 100 | 43~160 | 5 | 1 | 3000VAC | DIP（With heatsink） | 60.80*39.20*27.80 |
-
|
|
|
|
| URF1D12QB-100WHR3 | 100 | 43~160 | 12 | 1 | 3000VAC | DIP（With heatsink） | 60.80*39.20*27.80 |
-
|
|
|
|
| URF1D15QB-100WHR3 | 100 | 43~160 | 15 | 1 | 3000VAC | DIP（With heatsink） | 60.80*39.20*27.80 |
-
|
|
|
|
| URF1D24QB-100WHR3 | 100 | 43~160 | 24 | 1 | 3000VAC | DIP（With heatsink） | 60.80*39.20*27.80 |
-
|
|
|
|
| URF1D48QB-100WHR3 | 100 | 43~160 | 48 | 1 | 3000VAC | DIP（With heatsink） | 60.80*39.20*27.80 |
-
|
|
|
|
| URF1D05HB-150WR3 | 150 | 43~160 | 5 | 1 | 3000VAC | DIP | 61*57.9*13.8 |
-
|
|
|
|
| URF1D12HB-150WR3 | 150 | 43~160 | 12 | 1 | 3000VAC | DIP | 61*57.9*13.8 |
-
|
|
|
|
| URF1D15HB-150WR3 | 150 | 43~160 | 15 | 1 | 3000VAC | DIP | 61*57.9*13.8 |
-
|
|
|
|
| URF1D24HB-150WR3 | 150 | 43~160 | 24 | 1 | 3000VAC | DIP | 61*57.9*13.8 |
-
|
|
|
|
| URF1D48HB-150WR3 | 150 | 43~160 | 48 | 1 | 3000VAC | DIP | 61*57.9*13.8 |
-
|
|
|
|
| URF1D05HB-150WHR3 | 150 | 43~160 | 5 | 1 | 3000VAC | DIP（With heatsink） | 62*58*31.8 | - |
|
|
|
| URF1D12HB-150WHR3 | 150 | 43~160 | 12 | 1 | 3000VAC | DIP（With heatsink） | 62*58*31.8 | - |
|
|
|
| URF1D15HB-150WHR3 | 150 | 43~160 | 15 | 1 | 3000VAC | DIP（With heatsink） | 62*58*31.8 | - |
|
|
|
| URF1D24HB-150WHR3 | 150 | 43~160 | 24 | 1 | 3000VAC | DIP（With heatsink） | 62*58*31.8 | - |
|
|
|
| URF1D48HB-150WHR3 | 150 | 43~160 | 48 | 1 | 3000VAC | DIP（With heatsink） | 62*58*31.8 | - |
|
|
|
| URF1D05HB-250WR3A7 | 250 | 43~160 | 5 | 1 | 3000VAC | Chassis | 165.0*78.0*41.5 |
-
|
|
|
|
| URF1D12HB-250WR3A7 | 250 | 43~160 | 12 | 1 | 3000VAC | Chassis | 165.0*78.0*41.5 |
-
|
|
|
|
| URF1D15HB-250WR3A7 | 250 | 43~160 | 15 | 1 | 3000VAC | Chassis | 165.0*78.0*41.5 |
-
|
|
|
|
| URF1D24HB-250WR3A7 | 250 | 43~160 | 24 | 1 | 3000VAC | Chassis | 165.0*78.0*41.5 |
-
|
|
|
|
| URF1D48HB-250WR3A7 | 250 | 43~160 | 48 | 1 | 3000VAC | Chassis | 165.0*78.0*41.5 |
-
|
|
|
|
| URF1D54HB-250WR3A7 | 250 | 43~160 | 54 | 1 | 3000VAC | Chassis | 165.0*78.0*41.5 |
-
|
|
|
|
| URF1D40HB-250WHR3 | 250 | 40~160 | 40 | 1 | 3000VAC | DIP（With heatsink） | 62.00*58.00*31.80 | - |
|
|
|
| URF1D05HB-250WR3A5 | 250 | 40~160 | 5 | 1 | 3000VAC | Chassis | 135.00*70.00*22.40 |
-
|
|
|
|
| URF1D12HB-250WR3A5 | 250 | 40~160 | 12 | 1 | 3000VAC | Chassis | 135.00*70.00*22.40 |
-
|
|
|
|
| URF1D15HB-250WR3A5 | 250 | 40~160 | 15 | 1 | 3000VAC | Chassis | 135.00*70.00*22.40 |
-
|
|
|
|
| URF1D24HB-250WR3A5 | 250 | 40~160 | 24 | 1 | 3000VAC | Chassis | 135.00*70.00*22.40 |
-
|
|
|
|
| URF1D48HB-250WR3A5 | 250 | 40~160 | 48 | 1 | 3000VAC | Chassis | 135.00*70.00*22.40 |
-
|
|
|
|
| URF1D54HB-250WR3A5 | 250 | 40~160 | 54 | 1 | 3000VAC | Chassis | 135.00*70.00*22.40 |
-
|
|
|
|
| URF1D05HB-250WR3 | 250 | 43~160 | 5 | 1 | 3000VAC | DIP | 61*57.9*13.8 | - |
|
|
|
| URF1D12HB-250WR3 | 250 | 43~160 | 13 | 1 | 3000VAC | DIP | 61*57.9*13.8 | - |
|
|
|
| URF1D15HB-250WR3 | 250 | 43~160 | 15 | 1 | 3000VAC | DIP | 61*57.9*13.8 | - |
|
|
|
| URF1D24HB-250WR3 | 250 | 43~160 | 24 | 1 | 3000VAC | DIP | 61*57.9*13.8 | - |
|
|
|
| URF1D48HB-250WR3 | 250 | 43~160 | 48 | 1 | 3000VAC | DIP | 61*57.9*13.8 | - |
|
|
|
| URF1D54HB-250WR3 | 250 | 43~160 | 54 | 1 | 3000VAC | DIP | 61*57.9*13.8 | - |
|
|
|
| URF1D05HB-250WHR3 | 250 | 43~160 | 5 | 1 | 3000VAC | DIP（With heatsink） | 62*58*30.8 | - |
|
|
|
| URF1D12HB-250WHR3 | 250 | 43~160 | 13 | 1 | 3000VAC | DIP（With heatsink） | 62*58*30.8 | - |
|
|
|
| URF1D15HB-250WHR3 | 250 | 43~160 | 15 | 1 | 3000VAC | DIP（With heatsink） | 62*58*30.8 | - |
|
|
|
| URF1D24HB-250WHR3 | 250 | 43~160 | 24 | 1 | 3000VAC | DIP（With heatsink） | 62*58*30.8 | - |
|
|
|
| URF1D48HB-250WHR3 | 250 | 43~160 | 48 | 1 | 3000VAC | DIP（With heatsink） | 62*58*30.8 | - |
|
|
|
| URF1D54HB-250WHR3 | 250 | 43~160 | 54 | 1 | 3000VAC | DIP（With heatsink） | 62*58*30.8 | - |
|
|
|
* For reference only. The detailed info please refer to the datasheet.
