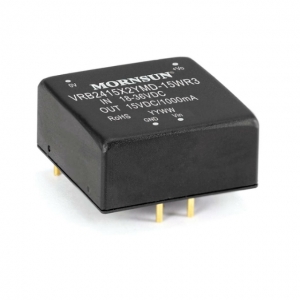

VRB2415X2YMD-15WR3
Features
VRB2415X2YMD-15WR3 is isolated 15W DC-DC converter products with a wide 2:1 input voltage with efficiencies of up to 91%, input to output isolation is tested 1500VDC, an operating ambient temperature range of -40℃ to +105℃, input under-voltage protection, output over-voltage, over-current, short-circuit protection, CISPR32/EN55032 CLASS A EMI compliant without external components, which makes them widely used in industrial control, electric power, instruments and communications applications
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| VRB2415X2YMD-15WR3 | 15 | 24(18-36) | 15 | 1 | 1500VDC | DIP | 25.40*25.40*11.70 | - |
* For reference only. The detailed info please refer to the datasheet.
