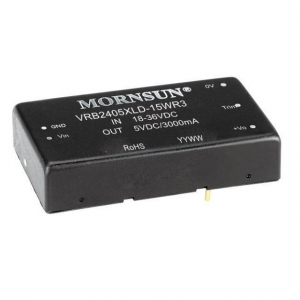

VRB2405XLD-15WR3
Features
VRB2405XLD-15WR3 isolated 15W DC-DC products with a 2:1 input voltage range. They feature efficiencies of up to 90%, 1500VDC input to output isolation, operating ambient temperature range of -40℃ to +85℃, input under-voltage protection, output short-circuit, over-voltage, over-current protection. They meet CLASS A of CISPR32/EN55032 EMI standards without external components, and they are widely used in applications such as data transmission device, battery power supplies, tele-comunication device, distributed power supply system, hybrid module system, remote control system, industrial robot system fields.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| VRB2405XLD-15WR3 | 15 | 24(18-36) | 5 | 1 | 1500VDC | DIP | 50.80*25.40*11.80 | - |
* For reference only. The detailed info please refer to the datasheet.
