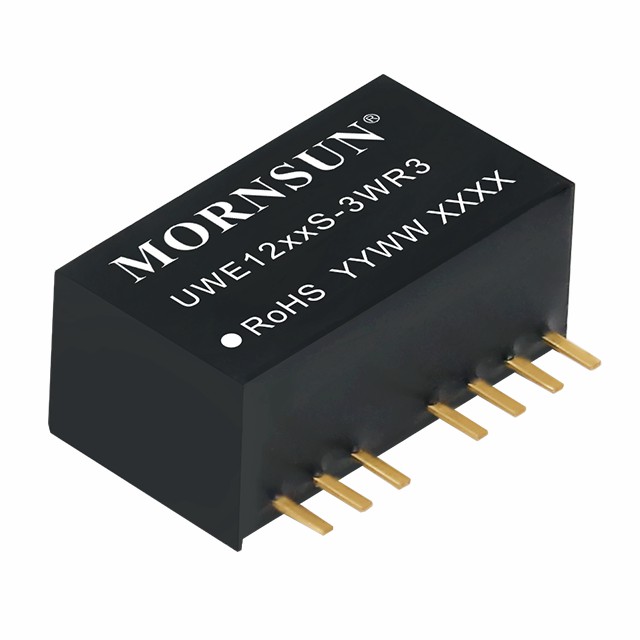

UWE_S-3WR3
Features
UWE/F_S-3WR3 series of isolated 3W DC-DC products with an ultra-wide 8:1 input voltage range. They feature efficiencies of up to 79%, 3000VDC input to output isolation, operating ambient temperature range of -40℃ to +105℃, input under-voltage protection, output over-current, short circuit protection and they are widely used in applications such as medical care, industrial control, electric power, instruments and communication fields.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation(VDC) | Package | Dimension(mm) | Footprint & 3D | Certification | Datasheet | Sample | Buy |
| UWE1205S-3WR3 | 3 | 4.5~36 | ±5 | 2 | 3000 | SIP | 22.00*9.50*12.00 | - |
-
|
-
|
|
|
| UWE1212S-3WR3 | 3 | 4.5~36 | ±12 | 2 | 3000 | SIP | 22.00*9.50*12.00 | - |
-
|
-
|
|
|
| UWE1215S-3WR3 | 3 | 4.5~36 | ±15 | 2 | 3000 | SIP | 22.00*9.50*12.00 | - |
-
|
-
|
|
|
* For reference only. The detailed info please refer to the datasheet.
| Product No. |
| UWE1205S-3WR3 |
| UWE1212S-3WR3 |
| UWE1215S-3WR3 |
