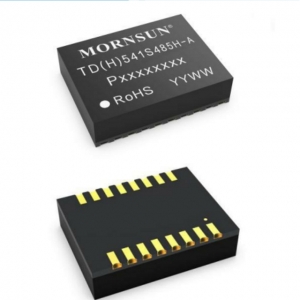

TD(H)541S485H-A
Features
TD(H)541S485H-Aisahalf-duplexenhancedtransceiverdesignedforRS–485databusnetworks,whichisfullycompliantwithTIA/EIA-485A standardandissuitablefordatatransmissionofupto500kbps.Inaddition,theproductfeaturesanautomaticswitchingfunction,thatnolongerrequires theneedtopassthroughthenodetosendandreceivecontrolsignals,whichtoacertainextent,reducesthedesigncomplexity.Theirlogicsidesupports 3.3Vand5Vlogiclevelconversion.Receivershaveanexceptionallyhighinputimpedance,whichplacesonly1/8ofthestandardloadonasharedbus andupto256transceivers. ThereliabilitydesignofAandBpinisemphasized,includingdriveroutputovercurrentprotectionandenhancedESDdesign.TheESDprotection levelofA,Bpincanbeupto15kV(HumanBodyModel).
| Product No. | Integrated Power | No of Channel | Transmission Rate(bps) | Vin(VDC) | Nodes Number | Isolation | Package | Features | Footprint & 3D | Markings | Datasheet | Sample |
* For reference only. The detailed info please refer to the datasheet.
