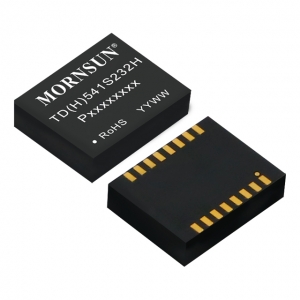

TD(H)541S232H
Features
TD(H)541S232H is a RS232 transceiver with low power consumption and high electrostatic protection and ESD protection, and it is fully compliant with TIA/EIA-232 standards. The main function of the product will be to convert the TTL level to the level of the RS232 protocol to achieve signal isolation. And the product comes with a constant voltage isolation power supply, which can achieve 3000/5000VDC electrical isolation, and can also be easily embedded in user equipment, so that the equipment can easily realize the connection function of the RS232 protocol network.
541S232H.jpg)
| Product No. | Integrated Power | No of Channel | Transmission Rate(bps) | Vin(VDC) | Isolation | Package | Features | Footprint & 3D | Markings | Datasheet | Sample | Buy |
| TD541S232H | √ | 1 | 120K | 5 | 3000VDC | DFN | Ultra-small, ultra-thin, chip-le | - |
* For reference only. The detailed info please refer to the datasheet.
