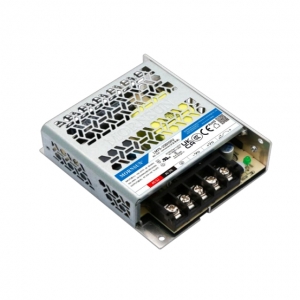

LM75-23BxxR2
Features
LM75-23BxxR2 series is the ultra-small second-generation new industrial standard mental case-type power supply. Mornsun has innovated the industrial chassis power supply standard from the dimensions of size, performance, technology, and structure. It features universal AC input, accepts DC input voltage, is cost-effective, has low no-load power consumption, high efficiency, high reliability, and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN/BSEN62368, EN60335, EN61558, EN62477, GB4943 standards, and they are widely used in the area of industrial, LED, streetlight control, electricity, security, telecommunications, smart home, etc.
Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | Efficiency(%) | Isolation | Footprint & 3D | Markings | Datasheet | Sample | Buy |
LM75-23B05R2 | 70 | 80-305 | 100-430 | 5V | 14A | 86.5 | 4000VAC | |||||
LM75-23B12R2 | 72 | 80-305 | 100-430 | 12V | 6A | 89 | 4000VAC | |||||
LM75-23B15R2 | 75 | 80-305 | 100-430 | 15V | 5A | 89 | 4000VAC | |||||
LM75-23B36R2 | 75.6 | 80-305 | 100-430 | 36V | 2.1A | 91 | 4000VAC | |||||
LM75-23B54R2 | 75.6 | 80-305 | 100-430 | 54V | 1.4A | 92.5 | 4000VAC | |||||
LM75-23B24R2 | 76.8 | 80-305 | 100-430 | 24V | 3.2A | 91 | 4000VAC | |||||
LM75-23B48R2 | 76.8 | 80-305 | 100-430 | 48V | 1.6A | 92.5 | 4000VAC |
* For reference only. The detailed info please refer to the datasheet.
