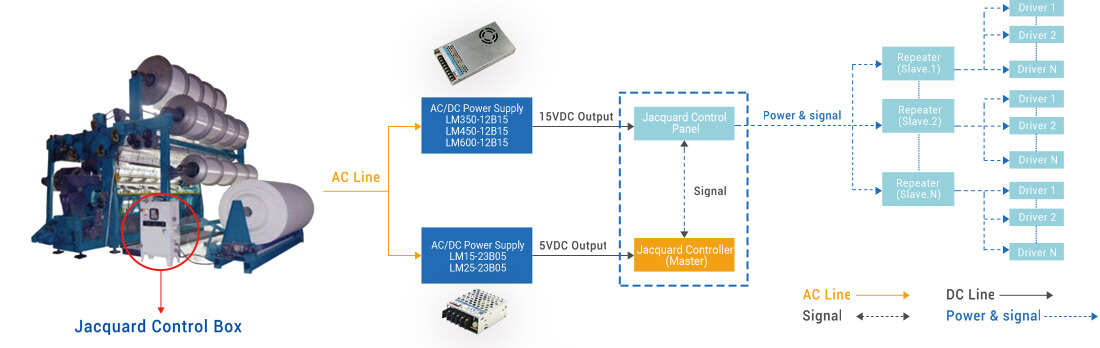

MORNSUN's wide range of 15-600W cost-effective AC/DC enclosed switching power supplies LM series are widely used and specialized for textile industry applications such as textile machinery, weaving machinery, warp knitting machine, jacquard machine, embroidery and braiding machinery, etc.

Selection Guide

There are 63 results in total. Please see the list as below.
Loading...
Swipe to view all →
Product No. Power(W) Vin(VAC) Nominal Vout and Io(V/A) Operating Temperature No. of Outputs Efficiency(%) Isolation(VAC) Certification Datasheet Sample
LM15-23B03 9.9 85~305VAC/100~430VDC 3.3V/3.0A -30℃ to +70℃ 1 83 4000 CE 3C UL - sample request
LM15-23B05 15 85~305VAC/100~430VDC 5V/3.0A -30℃ to +70℃ 1 83 4000 CE 3C UL - sample request
LM15-23B15 15 85~305VAC/100~430VDC 15V/1.0A -30℃ to +70℃ 1 83 4000 CE 3C UL - sample request
LM15-23B24 15 85~305VAC/100~430VDC 24V/0.625A -30℃ to +70℃ 1 83 4000 CE 3C UL - sample request
LM15-23B48 15.36 85~305VAC/100~430VDC 48V/0.32A -30℃ to +70℃ 1 83 4000 CE 3C UL - sample request
LM15-23B12 15.6 85~305VAC/100~430VDC 12V/1.3A -30℃ to +70℃ 1 83 4000 CE 3C UL - sample request
LM25-23B03 19.8 85~305VAC/100~430VDC 3.3V/6A -30℃ to +70℃ 1 88 4000 CE 3C UL - sample request
LM25-23B05 25 85~305VAC/100~430VDC 5V/5A -30℃ to +70℃ 1 88 4000 CE 3C UL - sample request
LM25-23B12 25.2 85~305VAC/100~430VDC 12V/2.1A -30℃ to +70℃ 1 88 4000 CE 3C UL - sample request
LM25-23B15 25.5 85~305VAC/100~430VDC 15V/1.7A -30℃ to +70℃ 1 88 4000 CE 3C UL - sample request
LM25-23B24 26.4 85~305VAC/100~430VDC 24V/1.1A -30℃ to +70℃ 1 88 4000 CE 3C UL - sample request
LM25-23B48 27.36 85~305VAC/100~430VDC 48V/0.57A -30℃ to +70℃ 1 88 4000 CE 3C UL - sample request
LM35-22B05 35 165~264VAC/180~373VDC 5V/7A -30℃ to +70℃ 1 82 4000 CE UL CB 3C - sample request
LM35-22B12 36 165~264VAC/180~373VDC 12V/3A -30℃ to +70℃ 1 86 4000 CE UL CB 3C - sample request
LM35-22B15 36 165~264VAC/180~373VDC 15V/2.4A -30℃ to +70℃ 1 87 4000 CE UL CB 3C - sample request
LM35-22B24 36 165~264VAC/180~373VDC 24V/1.5A -30℃ to +70℃ 1 88 4000 CE UL CB 3C - sample request
LM50-22B05 50 165~264VAC/180~373VDC 5V/10A -30℃ to +70℃ 1 83 4000 CE UL 3C - sample request
LM50-22B12 50.4 165~264VAC/180~373VDC 12V/4.2A -30℃ to +70℃ 1 86 4000 CE UL 3C - sample request
LM50-22B15 51 165~264VAC/180~373VDC 15V/3.4A -30℃ to +70℃ 1 87 4000 CE UL 3C - sample request
LM50-22B36 52.2 165~264VAC/180~373VDC 36V/1.45A -30℃ to +70℃ 1 89 4000 CE UL 3C - sample request
LM50-22B24 52.8 165~264VAC/180~373VDC 24V/2.2A -30℃ to +70℃ 1 88 4000 CE UL 3C - sample request
LM50-22B48 52.8 165~264VAC/180~373VDC 48V/1.1A -30℃ to +70℃ 1 90 4000 CE UL 3C - sample request
LM75-22B05 70 165~264VAC/200~373VDC 5V/14A -30℃ to +70℃ 1 86 4000 CE 3C UL - sample request
LM75-22B12 72 165~264VAC/200~373VDC 12V/6A -30℃ to +70℃ 1 88 4000 CE 3C UL - sample request
LM75-22B15 75 165~264VAC/200~373VDC 15V/5A -30℃ to +70℃ 1 88 4000 CE 3C UL - sample request
LM75-22B36 75.6 165~264VAC/200~373VDC 36V/2.1A -30℃ to +70℃ 1 90 4000 CE 3C UL - sample request
LM75-22B24 76.8 165~264VAC/200~373VDC 24V/3.2A -30℃ to +70℃ 1 90 4000 CE 3C UL - sample request
LM75-22B48 76.8 165~264VAC/200~373VDC 48V/1.6A -30℃ to +70℃ 1 91.5 4000 CE 3C UL - sample request
LM100-22B05 90 165~264VAC/200~373VDC 5V/18A -30℃ to +70℃ 1 86 4000 CE UL CB 3C - sample request
LM100-22B36 100.8 165~264VAC/200~373VDC 36V/2.8A -30℃ to +70℃ 1 90 4000 CE UL CB 3C - sample request
LM100-22B12 102 165~264VAC/200~373VDC 12V/8.5A -30℃ to +70℃ 1 87.5 4000 CE UL CB 3C - sample request
LM100-22B15 105 165~264VAC/200~373VDC 15V/7A -30℃ to +70℃ 1 87.5 4000 CE UL CB 3C - sample request
LM100-22B24 108 165~264VAC/200~373VDC 24V/4.5A -30℃ to +70℃ 1 90 4000 CE UL CB 3C - sample request
LM100-22B48 110.4 165~264VAC/200~373VDC 48V/2.3A -30℃ to +70℃ 1 91 4000 CE UL CB 3C - sample request
LM150-22B12 150 165~264VAC/180~373VDC 12V/12.5A -30℃ to +70℃ 1 86 4000 CE UL CB 3C - sample request
LM150-22B15 150 165~264VAC/180~373VDC 15V/10A -30℃ to +70℃ 1 87 4000 CE UL CB 3C - sample request
LM150-22B36 154.8 165~264VAC/180~373VDC 36V/4.3A -30℃ to +70℃ 1 88 4000 CE UL CB 3C - sample request
LM150-22B24 156 165~264VAC/180~373VDC 24V/6.5A -30℃ to +70℃ 1 88 4000 CE UL CB 3C - sample request
LM150-22B48 158.4 165~264VAC/180~373VDC 48V/3.3A -30℃ to +70℃ 1 89 4000 CE UL CB 3C - sample request
LM200-12B05 200 176~264VAC/240~373VDC 5V/40A -30℃ to +70℃ 1 87 3000 CE CQC UL CB - sample request
LM200-12B12 204 176~264VAC/240~373VDC 12V/17A -30℃ to +70℃ 1 87.5 3000 CE CQC UL CB - sample request
LM200-12B15 210 176~264VAC/240~373VDC 15V/14A -30℃ to +70℃ 1 88 3000 CE CQC UL CB - sample request
LM200-12B24 211.2 176~264VAC/240~373VDC 24V/8.8A -30℃ to +70℃ 1 88.5 3000 CE CQC UL CB - sample request
LM200-12B48 211.2 176~264VAC/240~373VDC 48V/4.4A -30℃ to +70℃ 1 89.5 3000 CE CQC UL CB - sample request
LM200-12B36 212.4 176~264VAC/240~373VDC 36V/5.9A -30℃ to +70℃ 1 89 3000 CE CQC UL CB - sample request
LM350-12B12 348 176~264VAC/240~373VDC 12V/29A -30℃ to +70℃ 1 85.5 3000 CE CQC UL CB - sample request
LM350-12B15 348 176~264VAC/240~373VDC 15V/23.2A -30℃ to +70℃ 1 87.5 3000 CE CQC UL CB - sample request
LM350-12B36 349.2 176~264VAC/240~373VDC 36V/9.7A -30℃ to +70℃ 1 88 3000 CE CQC UL CB - sample request
LM350-12B05 350 176~264VAC/240~373VDC 5V/60A -30℃ to +70℃ 1 84 3000 CE CQC UL CB - sample request
LM350-12B24 350.4 176~264VAC/240~373VDC 24V/14.6A -30℃ to +70℃ 1 87 3000 CE CQC UL CB - sample request
LM350-12B48 350.4 176~264VAC/240~373VDC 48V/7.3A -30℃ to +70℃ 1 89 3000 CE CQC UL CB - sample request
LM450-12B12 450 176~264VAC/240~373VDC 12V/37.5A -30℃ to +70℃ 1 88 3000 CE - sample request
LM450-12B15 450 176~264VAC/240~373VDC 15V/30A -30℃ to +70℃ 1 88 3000 CE - sample request
LM450-12B36 450 176~264VAC/240~373VDC 36V/12.5A -30℃ to +70℃ 1 87.5 3000 CE - sample request
LM450-12B27 450.9 176~264VAC/240~373VDC 27V/16.7A -30℃ to +70℃ 1 87 3000 CE - sample request
LM450-12B24 451.2 176~264VAC/240~373VDC 24V/18.8A -30℃ to +70℃ 1 88 3000 CE - sample request
LM450-12B48 451.2 176~264VAC/240~373VDC 48V/9.4A -30℃ to +70℃ 1 88 3000 CE - sample request
LM600-12B36 597.6 176~264VAC/240~373VDC 36V/16.6A -30℃ to +60℃ 1 87 3000 CE - sample request
LM600-12B27 599.4 76~264VAC/240~373VDC 27V/22.2A -30℃ to +60℃ 1 87 3000 CE - sample request
LM600-12B12 600 176~264VAC/240~373VDC 12V/50A -30℃ to +60℃ 1 85 3000 CE - sample request
LM600-12B15 600 176~264VAC/240~373VDC 15V/40A -30℃ to +60℃ 1 86 3000 CE - sample request
LM600-12B24 600 176~264VAC/240~373VDC 24V/25A -30℃ to +60℃ 1 87 3000 CE - sample request
LM600-12B48 600 176~264VAC/240~373VDC 48V/12.5A -30℃ to +60℃ 1 88 3000 CE - sample request

* For reference only. The detailed info please refer to the datasheet.
