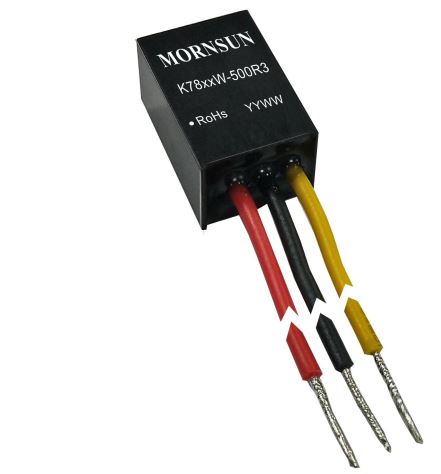

[New products] Non-isolated DC-DC Converter--K78xxW-500R3 Series

    K78xx-500R3 series are high efficiency switching regulators and ideal substitutes of LM78xx series three-terminal linear regulators. The product is featured with high efficiency, low loss, short circuit protection, support the negative output and no heat sink requirement

Applications
They are widely used in industrial control, instrumentation, and electric power applications.

Features
▶ High efficiency up to 95%
▶ No-load input current as low as 0.2mA
▶ Operating temperature range: -40℃ to +85℃
▶ Support the negative output
▶ Output short circuit protection

▶ Pin-out compatible with LM78XX linear regulators


Please refer to the technical manual for specific product parameters:

Series Vin(VDC) Vout(VDC) Iout(mA) No. of Outputs Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
K7803W-500R3 24(4.75-36) 3.3 500 1 Chassis 11.50*9.00*17.50
K7805W-500R3 24(6.5-36) 5 500 1 Chassis 11.50*9.00*17.50
K7809W-500R3 24(12-36) 9 500 1 Chassis 11.50*9.00*17.50
K7812W-500R3 24(15-36) 12 500 1 Chassis 11.50*9.00*17.50
K7815W-500R3 8~36 15 500 1 Chassis 11.50*9.00*17.50
