A photovoltaic (PV) system is a system composed of photovoltaic array, combiner, DC power distribution cabinet, inverter, boosting transformer, etc.
Higher input and output voltage levels can reduce line losses of the AC/DC side and wiring losses of low-side voltage of the transformer, which is helpful to increase
the system efficiency of the power station.In addition, power density improvement and compact size for the system can save the costs of transportation and
maintenance.
MORNSUN's 1500V high input voltage DC/DC converters can directly get electricity from the bus voltage of PV strings and then convert it to supply power for the
monitoring unit. They are widely used in applications of photovoltaic combiner box, photovoltaic inverter, energy storage system, wind energy conversion system,
UHV tran-smission, SVG, etc.

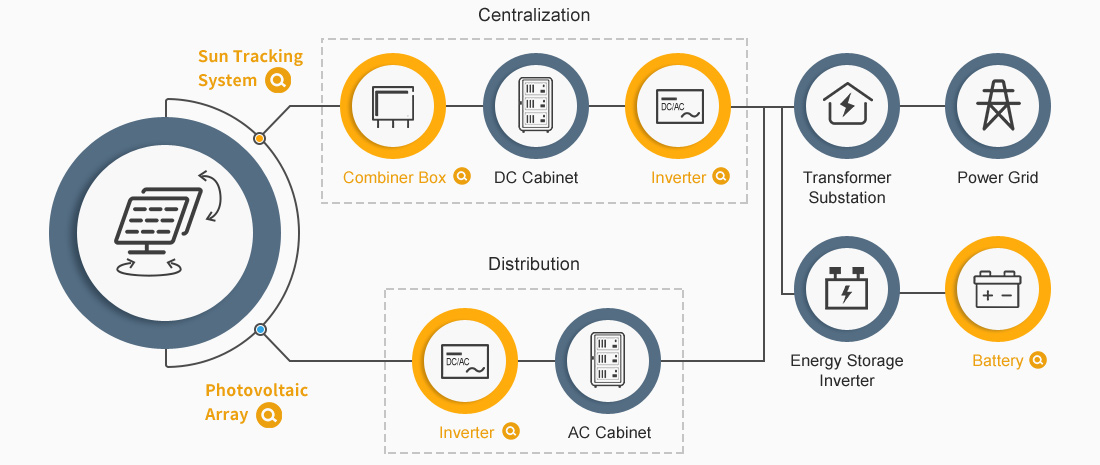

Photovoltaic System and Typical Applications
on the picture to see the details
PV Power Solutions
Selection Guide
There are 68 results in total. Please see the list as below.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Package | Dimension(mm) | Certification | Datasheet | Sample | Buy |
| PV05-27B05R2 | 5 | 100-1000 | 5 | 1 | DIP | 70.0*48.0*23.5 |
 -
|
|
|
|
| PV10-27B05R2 | 10 | 100-1000 | 5 | 1 | DIP | 70.0*48.0*23.5 |
-
|
|
|
|
| PV10-27B09R2 | 10 | 100-1000 | 9 | 1 | DIP | 70.0*48.0*23.5 |
-
|
|
|
|
| PV10-27B24R2 | 10 | 100-1000 | 24 | 1 | DIP | 70.0*48.0*23.5 |
-
|
|
|
|
| PV15-29B05 | 10 | 200-1500 | 5 | 1 | DIP | 125.00*75.00*40.00m |
-
|
|
|
|
| PV15-29B05L | 10 | 200-1500 | 5 | 1 | DIP | 109.00*58.50*30.00 | - |
|
|
|
| PV15-29B05R3 | 10 | 200-1500 | 5 | 1 | DIP | 89.00*63.50*25.00 |
-
|
|
|
|
| PV10-27C050524 | 10 | 200-1200 | 5,5,24 | 3 | DIP | 70.00*48.00*23.50 | - |
|
|
|
| PV15-29B12L | 15 | 200-1500 | 12 | 1 | DIP | 109.00*58.50*30.00 | - |
|
|
|
| PV15-29B15L | 15 | 200-1500 | 15 | 1 | DIP | 109.00*58.50*30.00 | - |
|
|
|
| PV15-29B24L | 15 | 200-1500 | 24 | 1 | DIP | 109.00*58.50*30.00 | - |
|
|
|
| PV15-27B12R2 | 15 | 100-1000 | 12 | 1 | DIP | 70.0*48.0*23.5 |
-
|
|
|
|
| PV15-27B15R2 | 15 | 100-1000 | 15 | 1 | DIP | 70.0*48.0*23.5 |
-
|
|
|
|
| PV15-27B24R2 | 15 | 100-1000 | 24 | 1 | DIP | 70.0*48.0*23.5 |
-
|
|
|
|
| PV15-29B12 | 15 | 200-1500 | 12 | 1 | DIP | 125.00*75.00*40.00m |
-
|
|
|
|
| PV15-29B15 | 15 | 200-1500 | 15 | 1 | DIP | 125.00*75.00*40.00m |
-
|
|
|
|
| PV15-29B24 | 15 | 200-1500 | 24 | 1 | DIP | 125.0*75.0*40.0 |
-
|
|
|
|
| PV15-27B12R3 | 15 | 100-1000 | 12 | 1 | DIP | 70.0*48.0*23.5 |
-
|
|
|
|
| PV15-27B15R3 | 15 | 100-1000 | 15 | 1 | DIP | 70.0*48.0*23.5 |
-
|
|
|
|
| PV15-27B24R3 | 15 | 100-1000 | 24 | 1 | DIP | 70.0*48.0*23.5 |
-
|
|
|
|
| PV15-29B12R3 | 15 | 200-1500 | 12 | 1 | DIP | 89.00*63.50*25.00 |
-
|
|
|
|
| PV15-29B15R3 | 15 | 200-1500 | 15 | 1 | DIP | 89.00*63.50*25.00 |
-
|
|
|
|
| PV15-29B24R3 | 15 | 200-1500 | 24 | 1 | DIP | 89.00*63.50*25.00 |
-
|
|
|
|
| PV15-29C050505 | 15 | 200-1500 | 5,5,5 | 3 | DIP | 89.00*63.50*25.00 | - |
|
|
|
| PV15-29C050524 | 15 | 200-1500 | 5,5,24 | 3 | DIP | 89.00*63.50*25.00 | - |
|
|
|
| PV75-36D15400-01 | 32,75 | 250-3300 | 15,400 | 2 | - | 220*157*40 | - |
|
|
|
| PV40-27B12 | 40 | 200~1200 | 12 | 1 | DIP | 89.00*63.50*25.00 | - |
|
|
|
| PV40-27B12A5 | 40 | 200~1200 | 12 | 1 | Chassis | 135.00*70.00*33.50 | - |
|
|
|
| PV40-27B12A6 | 40 | 200~1200 | 12 | 1 | DIN-Rail | 137.00*70.00*39.00 | - |
|
|
|
| PV40-27B15 | 40 | 200~1200 | 15 | 1 | DIP | 89.00*63.50*25.00 | - |
|
|
|
| PV40-27B15A5 | 40 | 200~1200 | 15 | 1 | Chassis | 135.00*70.00*33.50 | - |
|
|
|
| PV40-27B15A6 | 40 | 200~1200 | 15 | 1 | DIN-Rail | 137.00*70.00*39.00 | - |
|
|
|
| PV40-27B24 | 40 | 200~1200 | 24 | 1 | DIP | 89.00*63.50*25.00 | - |
|
|
|
| PV40-27B24A5 | 40 | 200~1200 | 24 | 1 | Chassis | 135.00*70.00*33.50 | - |
|
|
|
| PV40-27B24A6 | 40 | 200~1200 | 24 | 1 | DIN-Rail | 137.00*70.00*39.00 | - |
|
|
|
| PV40-29B12 | 40 | 200-1500 | 12 | 1 | DIP | 125.00*75.00*40.00 |
 -
|
|
|
|
| PV40-29B15 | 40 | 200-1500 | 15 | 1 | DIP | 125.00*75.00*40.00 |
-
|
|
|
|
| PV40-29B24 | 40 | 200-1500 | 24 | 1 | DIP | 125.00*75.00*40.00 |
-
|
|
|
|
| PV45-29D1515-15 | 45 | 150~1500 | 15 | 2 | Chassis | 144.50*105.00*40.00 | - |
|
|
|
| PV45-29D1505-10 | 45 | 150-1500 | 15,5 | 2 | DIP | 144.50*105.00*40.00 | - |
|
|
|
| PV45-29D1508-06 | 45 | 150-1500 | 15,8 | 2 | DIP | 144.50*105.00*40.00 | - |
|
|
|
| PV50-25B12 | 50 | 120~750 | 12 | 1 | Chassis | 109.00*58.50*30.00 | - |
|
|
|
| PV50-25B24 | 50 | 120~750 | 24 | 1 | Chassis | 109.00*58.50*30.00 | - |
|
|
|
| PV50-29D1505-20 | 50 | 150-1500 | 15,5 | 2 | Open frame | 150.00*100.00*38.70 | - |
|
|
|
| PV60-27D1215-13 | 60 | 200~1100 | 12,15 | 2 | Chassis | 162.00*269.00*32.00 | - |
|
|
|
| PV120-27B12 | 90 | 200~1100 | 12 | 1 | Chassis | 144.5*105*40 | - |
|
|
|
| PV120-27B15 | 100 | 200~1100 | 15 | 1 | Chassis | 144.5*105*40 | - |
|
|
|
| PV200-27B12 | 120 | 250~1000 | 12 | 1 | Chassis | 168.00*121.35*42.50 |
-
|
|
|
|
| PV120-27B24 | 120 | 200~1100 | 24 | 1 | Chassis | 144.5*105*40 | - |
|
|
|
| PV120-27B26 | 120 | 200~1100 | 26 | 1 | Chassis | 144.5*105*40 | - |
|
|
|
| PV120-27B28 | 120 | 200~1100 | 28 | 1 | Chassis | 144.5*105*40 | - |
|
|
|
| PV120-27B48 | 120 | 200~1100 | 48 | 1 | Chassis | 144.5*105*40 | - |
|
|
|
| PV150-29B12 | 120 | 250~1500 | 12 | 1 | Chassis | 168.00*111.20*42.50 |
-
|
|
|
|
| PV150-29B15 | 120 | 250~1500 | 15 | 1 | Chassis | 168.00*111.20*42.50 |
-
|
|
|
|
| PV150-29B24L | 150 | 250~1500 | 24 | 1 | Chassis | 201.00*70.00*42.00 | - |
|
|
|
| PV150-29B28L | 150 | 250~1500 | 28 | 1 | Chassis | 201.00*70.00*42.00 | - |
|
|
|
| PV150-29B32L | 150 | 250~1500 | 32 | 1 | Chassis | 201.00*70.00*42.00 | - |
|
|
|
| PV200-27B15 | 150 | 250~1000 | 15 | 1 | Chassis | 168.00*121.35*42.50 |
-
|
|
|
|
| PV150-29B24 | 150 | 250~1500 | 24 | 1 | Chassis | 168.00*111.20*42.50 |
-
|
|
|
|
| PV150-29B32 | 150 | 250~1500 | 32 | 1 | Chassis | 168.00*111.20*42.50 |
-
|
|
|
|
| PV150-29B48 | 150 | 250~1500 | 48 | 1 | Chassis | 168.00*111.20*42.50 |
-
|
|
|
|
| PV150-29B28 | 150 | 250~1500 | 28 | 1 | Chassis | 168.00*111.20*42.50 | - |
|
|
|
| PV200-29B32 | 200 | 300 ~1500 | 32 | 1 | Chassis | 215.00*125.00*50.00 |
-
|
|
|
|
| PV200-27B24 | 200 | 250~1000 | 24 | 1 | Chassis | 168.00*121.35*42.50 |
-
|
|
|
|
| PV200-27B26 | 200 | 250~1000 | 26 | 1 | Chassis | 168.00*121.35*42.50 |
-
|
|
|
|
| PV200-27B48 | 200 | 250~1000 | 48 | 1 | Chassis | 168.00*121.35*42.50 |
-
|
|
|
|
| PV200-29B24 | 200 | 300 ~1500 | 24 | 1 | Chassis | 215.00*125.00*50.00 |
-
|
|
|
|
| PV200-29B48 | 200 | 300 ~1500 | 48 | 1 | Chassis | 215.00*125.00*50.00 |
-
|
|
|
|
* For reference only. The detailed info please refer to the datasheet.
