Introduction of DC/DC Parallel Redundancy Module LIR-20

In order to solve the power interruption problem caused by circuit abnormality in the actual application, MORNSUN launched the parallel redundancy module LIR-20 to help customers achieve the system redundancy function and improve the overall system reliability.

MORNSUN DC/DC parallel redundancy module LIR-20 can be combined with a power supply to build a 1 + 1 and N + 1 parallel redundant system. At the same time, current stress can be reduced. The LIR-20A has the DC OK function and LED status indicator light, so the customer can monitor the working status that it improves product reliability and convenience to the customer.

The power supply can enter or exit arbitrarily under continuous power situation. It achieves online maintenance of the system and greatly saves installation and maintenance costs. Module maintenance and replacement will be simple and convenient, and system recovery takes only a few minutes.

Application of DC/DC Parallel Redundancy Module LIR-20

It can be widely used in smart buildings, communications, electricity, security, medical, industrial control, logistics, and other fields.

General application 1 (Inverter system):

(1) Connecting the 200W high voltage input PV200-29B24 power supply and 240W AC/DC power supply in parallel at the primary side.

(2) Using QA and QC692 IGBT driver in IGBT drive circuit.

MORNSUN DCDC Parallel Redundancy Module LIR-20.jpg

Key point:

Power supply at the primary side features high power, ultra-high input voltage range, 1500V safety design, and certification.  And it has a special potting process with high temperature and humidity resistance, cold and hot shocks, and dust pollution.

The power supply is redundantly connected in parallel at the primary side that can safely and reliably solve the consumption of high power in parallel.

General application 2 (industrial control):

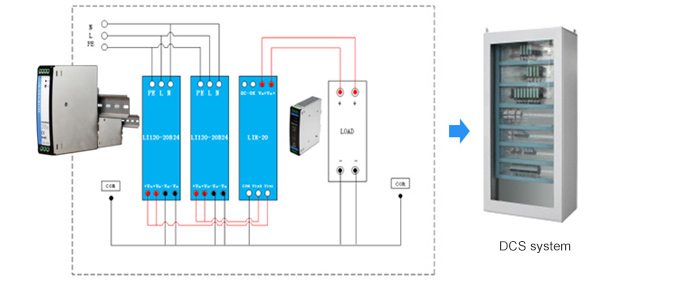

(3) Two LI120-20B24 rail power supplies are used at the input side, and LIR-20 redundant module is used at the output.

MORNSUN DCDC Parallel Redundancy Module LIR-20.jpg

   DCS system, PLC system, a computer system with a high power requirement

Application circuit:

a, 1+1 Redundancy: Using one or more PSU as the redundant unit.

MORNSUN DCDC Parallel Redundancy Module LIR-20.jpg

b, Single Use: Connecting only one PSU to one LIR-2 module to reduce the stress of the diodes and improve the reliability.

MORNSUN DCDC Parallel Redundancy Module LIR-20.jpg

c, N+1 redundancy:multiple switching power supply redundancy to improve system stability

MORNSUN DCDC Parallel Redundancy Module LIR-20.jpg

Features of DC/DC Parallel Redundancy Module LIR-20

● Input voltage range: 22 - 60VDC

● Operating temperature range: -40℃ to +80℃

● Supporting for N+1 parallel redundancy

● DC OK function

● DIN-Rail Package(Applicable types EN50022: TS-35/7.5 or TS-35/15)

● Two input status indicators(Vin1、Vin2)

High efficiency up to 97%


Operating altitude up to 5000m

EN62368 safety approved, Meet IEC/UL62368, EN61558, EN60335

* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Operating Temperature Efficiency(%) Dimension(mm) VINV Footprint & 3D Markings Datasheet Sample Buy
LIR-20 -40℃ to +80℃ 97 35.00*125.00*112.70 22 - 60VDC
