QA152D

Features

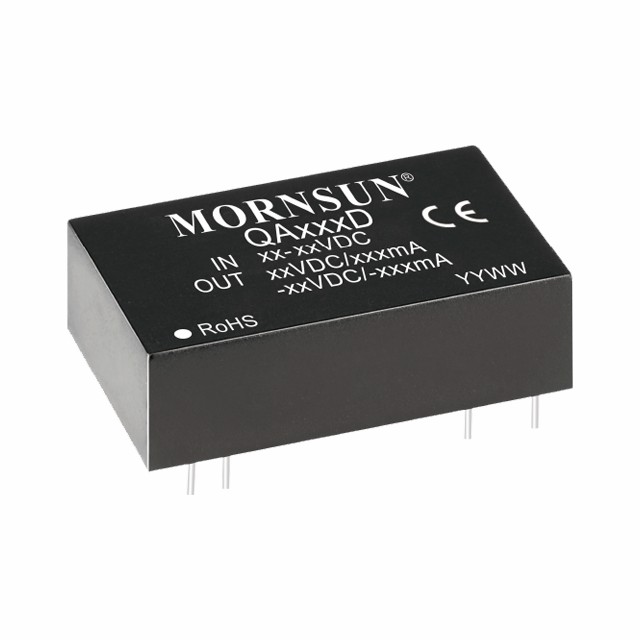

QA152D is a DC-DC converter for IGBT drivers which offers 4.8W rated output power. The built-in common-ground mode of the unique asymmetric voltage output mode reduces the driver loss of IGBT driver. The converters offer short-circuit protection with auto-recovery.

MORE
Loading...

Swipe to view all →
Product No. Vin(VDC) Iout Operating Temperature Positive Output(VDC) Negative Output(VDC) Efficiency(%) Isolation(VAC) Package Features Footprint & 3D Markings Datasheet Sample Buy
QA152D 15 (13.5-16.5) +200/-200 -40℃ to +85℃ 15 -9 80 4000 DIP Input Under-voltage Protection

* For reference only. The detailed info please refer to the datasheet.
