LH40-10Bxx

Features

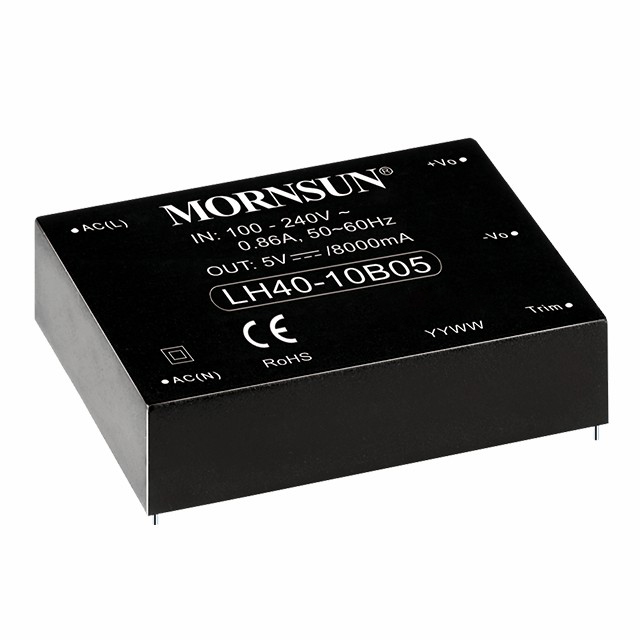

LH40-10Bxx series is a 40W efficient environmental-protection AC-DC module power supply, which has advantages such as universal input voltage, accept either AC or DC input, high efficiency, high reliability, low power consumption and high safety isolation. The series products are widely used in industries such as industrial control, electricity, office.

Note: Please refer to Design Reference when module being used in a bad EMC environment.

LH40-10Bxx
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VAC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LH40-10B12 40 85~264 12 1 3000 DIP 89.0*63.5*25.0 3D MODEL CE UL - LH40-10B12 - sample request buy on line
LH40-10B24 40 85~264 24 1 3000 DIP 89.0*63.5*25.0 3D MODEL CE UL - LH40-10B24 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
LH40-10B12
LH40-10B24
