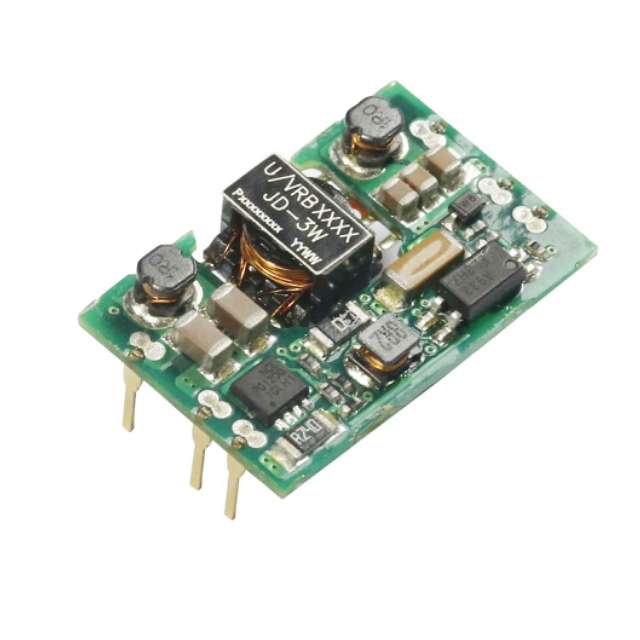

VRB_JD-3W

Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.

Features

VRB_JD-3W series are isolated 3W DC-DC converter products have an ultra-wide input voltage and feature efficiencies of to 82%, input to output isolation is tested with 500VAC / 1500VDC, input under-voltage protection, output over-voltage, over-current, short circuit protection and they are widely used in applications such as industrial control, electricity, instruments and communication fields.

MORNSUN_DC/DC - Wide Input Converter_VRB_JD-3W
MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample
VRB0505JD-3W 3 5(4.5-9) 5 1 1500VDC DIP 24.00*15.10*6.19
VRB0512JD-3W 3 5(4.5-9) 12 1 1500VDC DIP 24.00*15.10*6.19
VRB0515JD-3W 3 5(4.5-9) 15 1 1500VDC DIP 24.00*15.10*6.19
VRB0524JD-3W 3 5(4.5-9) 24 1 1500VDC DIP 24.00*15.10*6.19

* For reference only. The detailed info please refer to the datasheet.
